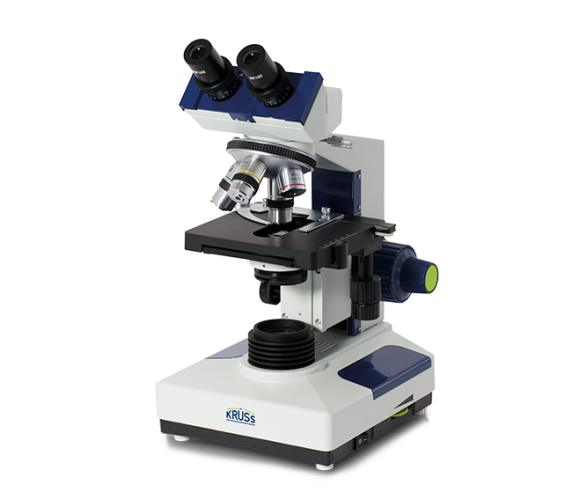

KRUSS MBL2000-T-PL-PH-LED 双目显微镜

With phototube, planachromatic objectives and phase contrast feature and LED illumination

Basic Equipment:

Optical Head: Inclined optical head, Symmetrical eye distance adjustment (55 – 75 mm), Dioptre compensation with scale

Objective Revolver: Quadruple

Objectives: Achromatic

4x 0.10 NA 17.04 mm working distance

10x 0.25 NA 8.05 mm working distance

40x 0.65 NA 0.32 mm working distance:

100x 1.25 NA 0.13 mm working distance

Eyepieces: 10x, focal length 25 mm

Condenser: Double lens ABBE Condenser, NA 1.25, with centering, height adjustment and filter holder

Illumination: 6 V 20 W halogen bulb with brightness control. LED for models with the description LED

Microscope Stage: With 0.1 mm increment memory scale, left-right range of movement 74 mm, forwards - backwards 30 mm.

Stand: Made of metal with coaxial coarse/fine knob with a range of 30 mm each. The right coarse adjustment knob comes with a mobility adjustment, the left coarse adjustment knob comes with a quick focusing adjustment

Further Equipment: Iris diaphragme, pivoting filter holder, height adjustment, glass filters in blue, yellow and green
