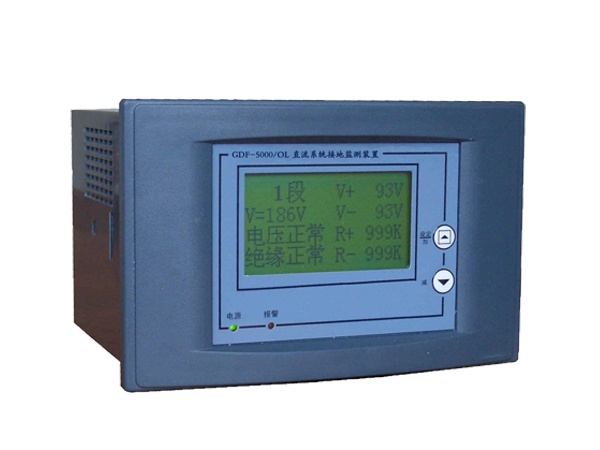

HV HIPOT GDF-5000/OL Online Insulation Monitoring Device for DC System (24, 48, 110, 220 V)
制造商: HV HIPOT Model: GDF-5000/OL 来源: China 保障: 12 Month - 联系
Input voltage grade: (Vin) 24, 48, 110, 220 V
Input voltage range: (Vf) 80%~140%Vin V
Voltage measurement accuracy: Vin=Vf: ±0.5%
Bus resistance range: (Rm) Vin=Vf 0~999 KΩ
Bus resistance accuracy: ±5%
Branch resistance range: (Rz) Vin=Vf: 0.0~100.0 KΩ
Branch resistance accuracy: ±5%
Branch numbers of each segment: (N) 0~64
Rated power consumption: (Po) 3 W
Operating temperature range: (Tj) -10~50 ℃
Alarm contact capacity: (Pf) DC, no sense 220V 0.2A
