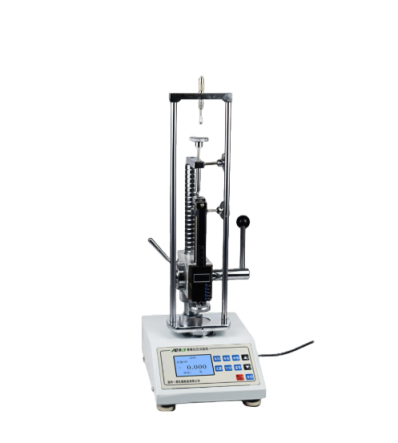

ALIYIQI ATHC-150 弹簧拉压试验机 (150N/ 15 kg/ 33 Lb, 48 mm)
制造商: ALIYIQI Model: ATHC-150 - 联系
Maximum test machine load: 150N/ 15 kg/ 33 Lb
Minimum resolution: 0.01N/ 0.001kg/ 0.001Lb
Platen diameter: 48 mm
Measurable maximum free length of spring: 150mm
Displacement scale travel: 90mm
Dimensions: 570*280*300mm
Net weight: 18kg
Accuracy: ±1%
Power Supply: Alternating current 220V～50Hz
Operating temperature: 10℃～30℃
Storage temperature: -27℃～70℃
Relative humidity: 15%～80%RH
Features:
Chinese color screen display, better human-organization interface.
High precision and high resolution.
Three measurement units have their own switching: N (Newton), kg (Kilogram), Lb (British pound).
Gravity acceleration setting, higher measurement and conversion accuracy.
Store 99 sets of test data, which can be viewed, stored and deleted directly on the machine.
Print the stored measurement data and maximum, minimum and average values.
Communication function: It uses USB interface to communicate with PC. The synchronous test function can be connected to a computer for testing. The computer displays the test force curve and the detailed test force records during the test
Datasheet
