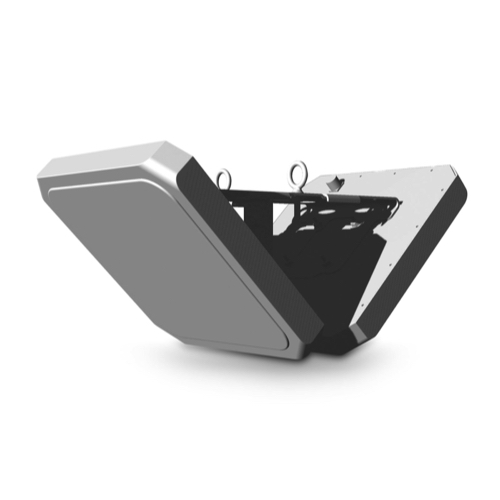

Zebra SR5502 Backroom & Warehouse RFID Antenna (865 – 956 MHz)

Polarization: Left-hand circular

Dimensions: 432 mm x 260 mm x 178 mm/ 17.0 in. x 10.0 in x 7.00 in

Connector: N-Type Female x2

Connector Location: Rear

Mounting Options: Mounting bracket provided

Weight: 5.5 lbs./2.5 kg

Frequency Ranges: 865 – 956 MHz

VSWR (Return Loss): 1.5:1

Gain: US: 6.7 dBiL; EU: 2 dBiL

Casing/Materials: Aluminum with white plastic cover

3 dB Beam Width: 83°x84°/71°x67°

Maximum Power: 18 Watts (37-55 VDC POE)

Operating Temperature: -20° to +55°C/-4° to +131°F

Storage Temperature: -40° to +70°C/-40° to +158°F

Humidity: 95% RH non-condensing
