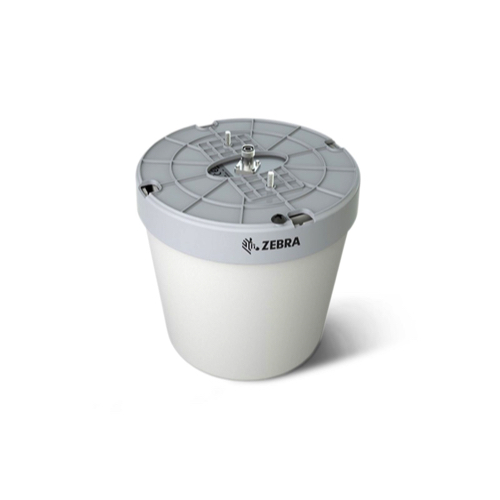

Zebra SP5504 Point of Sale RFID Antenna (865 ~ 868 MHz; 902 ~ 928 MHz)

Polarization: Left-hand circular

Dimensions: 184 mm x 184 mm diameter/ 7.0 in. x 7.3 in. diameter

Connector: N-Type Female

Connector Location: Top

Mounting Options: Accessory pole available

Weight: 2.2 lbs./1.0 kg

Frequency Ranges: 865 to 868 MHz or 902 to 928 MHz

VSWR (Return Loss): 1.5:1

Gain: 4.9 dB dBiL

Casing/Materials: Alum diecast w/white plastic cover

3 dB Beam Width: 63°/60°

Maximum Power: 13 Watts (37-55 VDC POE)

Operating Temperature: 0° to +50°C/32° to +122°F

Storage Temperature: -40° to +70°C/-40° to +158°F

Humidity: 95% RH non-condensing
