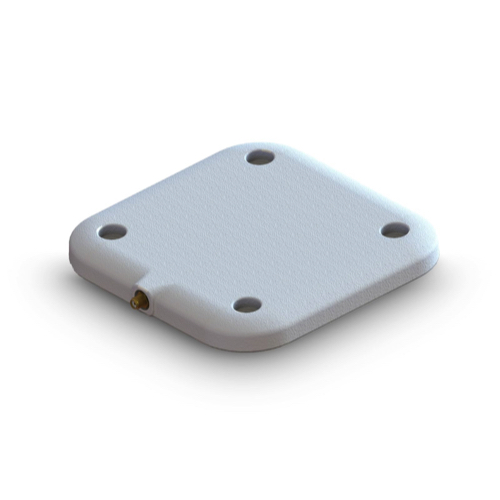

Zebra AN520 Ultra-Rugged, Low Profile Antenna (865-868 MHz / 902-928 MHz; 3 Watts)

Polarization: RHCP (Right Hand Circular Polarized)

Dimensions: 150 mm x 150 mm x 14 mm/ 5.9 in. x 5.9in x 0.55 in.

Connector: SMA female

Connector Location: Side connector

Mounting Options: Flush mount

Weight: 0.25 kg/0.55 lbs

Casing/Materials: UV-Resistant ABS

Frequency Ranges: ETSI: 865-868 MHz / FCC: 902-928 MHz

VSWR (Return Loss): 1.4 typical

Gain: 5.5 dBiC typical

Front to Back Ratio: -10 dB

3 dB Beam Width: 115° in both planes

Maximum Power: 3 Watts

Axial Ratio: 2 dB typical

Operating Temperature: -40° to +65°C/-40° to +149°F

Storage Temperature: -40° to +65°C/-40° to +149°F

IP Sealing: IP68

Vibration: IEC60068-2-64

Humidity: 72 Hours @ 85° C relative humidity
