Applicable range: Ф6mm～Ф50mm
Maximum allowed error for diameters measurement
: ±1 rebar standard level
Protective layer thickness range (mm)
Maximum allowed error for protective layer
First range: 2～100
-2～60: ±1 mm
-61～80: ±2 mm
-81～90:±3 mm
-91～100:±4 mm
Second range: 2～200
-2～60: ±1 mm
-61～80: ±2 mm
-81～90:±3 mm
-91～133:±4 mm
-134～169: ±5mm
-170～200: ±6mm
Data transmission: Wi-Fi/USB
LCD: 320×240
Power: Built-in chargeable lithium battery
Battery Time:>38 hours
Dimensions: 240×93×110mm
Weight: 0.67 kg
Datasheet
Manual

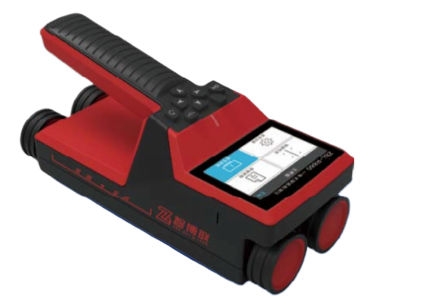

Testing the Location, distribution, direction, and diameter of the rebar and the thickness of concrete cover in concrete structure projects such as bridges, tunnels, walls etc. Detecting Ferro magnets in non-ferromagnetic media.
