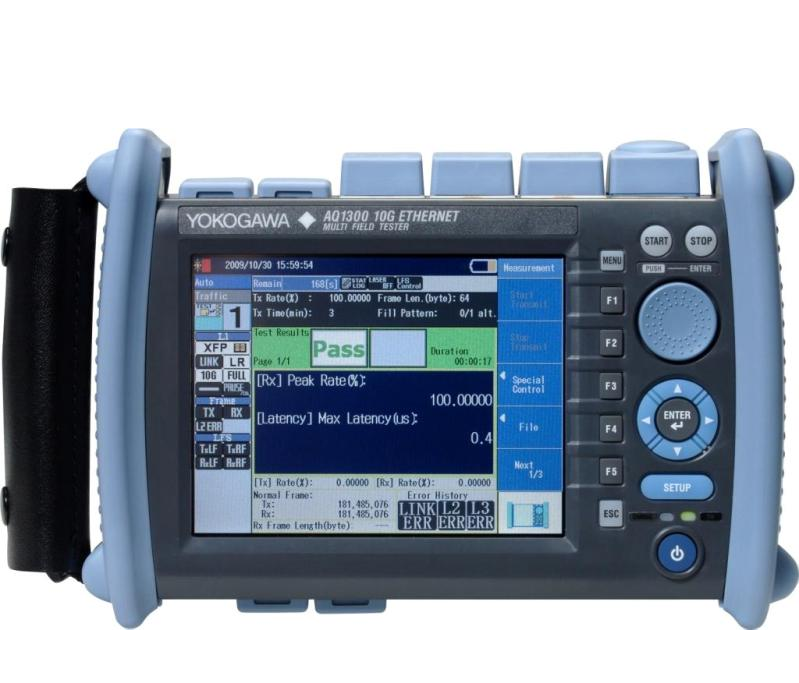

YOKOGAWA AQ1300 Portable Ethernet Tester (10G)

Optical connector: 1.25 mm dia ferrule, SC, FC

Wavelength: 850/1300/1310/1490/1550/1625/1650 nm

Power range: -70 dBm to +10 dBm (CW), -70 dBm to +7 dBm (CHOP)

Measurement accuracy: ±5% (Ta=23±2°C, condition: 1310 nm, -10 dBm, SM fiber)

Display: 5.7-inch color LCD (640 × 480)

AC Power supply : Voltage rated: 100 to 120/200 to 240 VAC; Frequency rated: 50/60Hz

Battery (Li-ion) operation time 1 hour

Charging time: ~ 5h (at 23°C, power off)

External dimensions: 217.5 (W) 157 (H) 74 (D) mm

Weight: Approx. 1.3 kg (including internal battery)

Included: Standard CD-ROM (software, manual), Manual, Battery Pack, AC adapter, Power cable, Shoulder Belt.

Brochure

Instruction Manual
