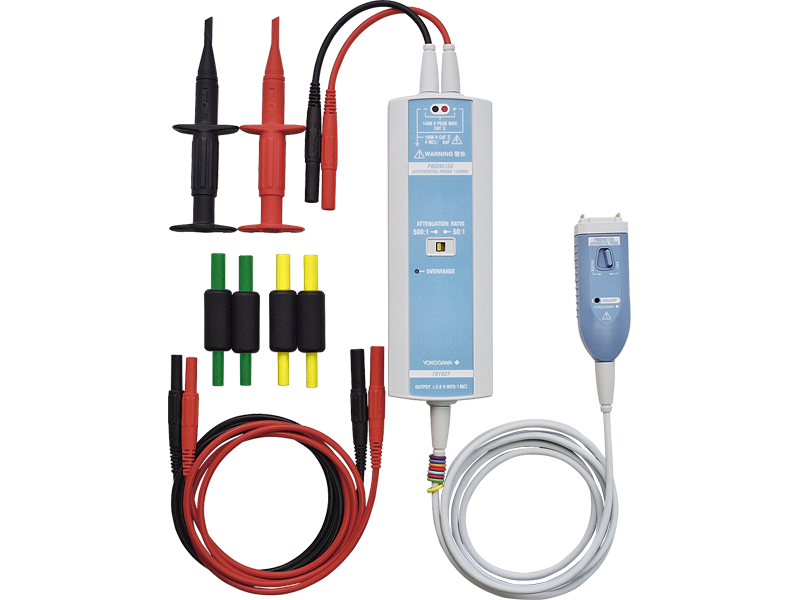

Bandwidth: DC to 150 MHz (-3 dB)
Bandwidth w/ Extension Lead: DC to 100 MHz (-3 dB, Typical)
Input Type: Balanced Differential Input
Attenuation Ratio: 50:1, 500:1 - Switchable
Input Resistance / Capacitance (Typical): 4 MΩ + 5 pF (to ground)
Allowable Differential Voltage: 500:1 ±1400 V (DC+ACpeak), 50:1 ±140 V (DC+ACpeak)
Allowable Common-Mode Voltage: ±1400 V (DC+ACpeak) or 1000 Vrms
Maximum Input voltage (to ground): ±1400 V (DC+ACpeak) or 1000 Vrms, CAT II
CMRR (Typical): -80 dB @ 60 Hz, -50 dB @ 1 MHz
Output Impedance: Used on a 1 MΩ Input Oscilloscope
Noise (Conversion to input, typical): 50 mVrms(50:1), 300 mVrms(500:1)
DC Gain Accuracy: ±2% (Common-Mode Voltage 400 V and -400 V), ±3% (Common-Mode Voltage 1000 V and -1000 V)
