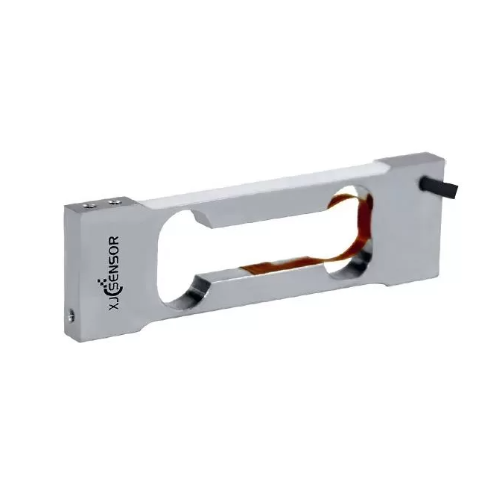

Material: Aluminum alloy
Rated output: 0.9±0.1mV/V
Zero balance: ±2%F.S.
Non-linearity: 0.03%F.S.
Hysteresis: 0.03%F.S.
Repeatability: 0.03%F.S.
Creep(30 min): 0.01%F.S.
Temp effect on output: 0.03%F.S./10°C
Temp effect on zero: 0.05%F.S./10°C
Input Impedance: 400±50Ω
Output impedance: 350±3Ω
Insulation: ≥5000MΩ/5VDC
Recommended excitation: 5-10V
Maximum excitation voltage: 15V
Compensated temp range: -10~40°C
Operating temp range: -10~80°C
Limit load: 120%
Breaking load: 150%
Cable size: φ3x4m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White
