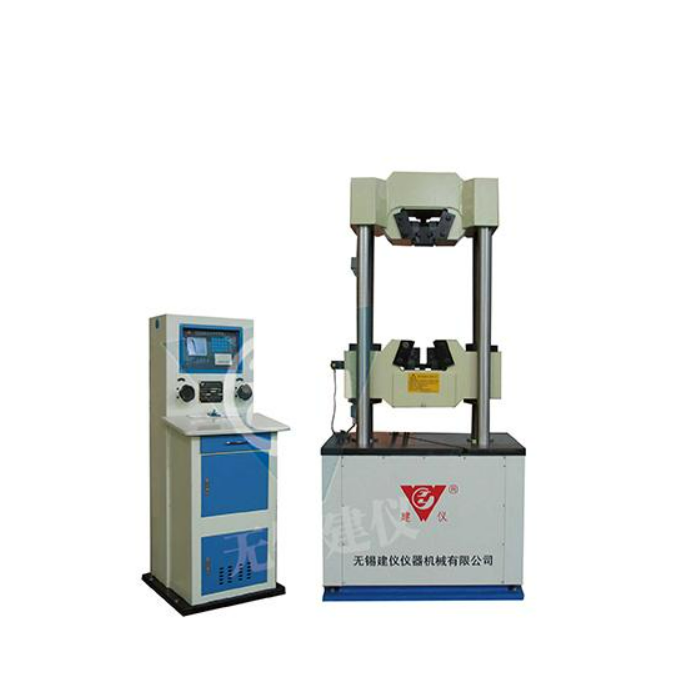

WEW series on A universal testing machine is mainly used for metal material tensile, compression, shear and bending test, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008, meet GB/T228.1-2010, GB/ t232-2010.
Max testing force: 100kN
Range of measurement: 2-100kN
Test force indicator accuracy: ±1%
Displacement indicator accuracy: ±1%
Maximum distance between upper and lower pressure plates (including piston stroke): 540mm
The distance between the column: 340mm
Piston stroke: 150mm
The circle sample holds the diameter: φ6～φ22mm
Flat sample holder diameter: 0-10mm
Upper pressure plate size: Φ100mm
Lower pressure plate size: Φ100mm
Maximum distance between bending rollers: 215mm
Power supply: 380V 50Hz 2.2kW
Overall dimension: 650×500×1894mm
Measurement system size: 660×600×1520mm
Suttle: 1650kg
