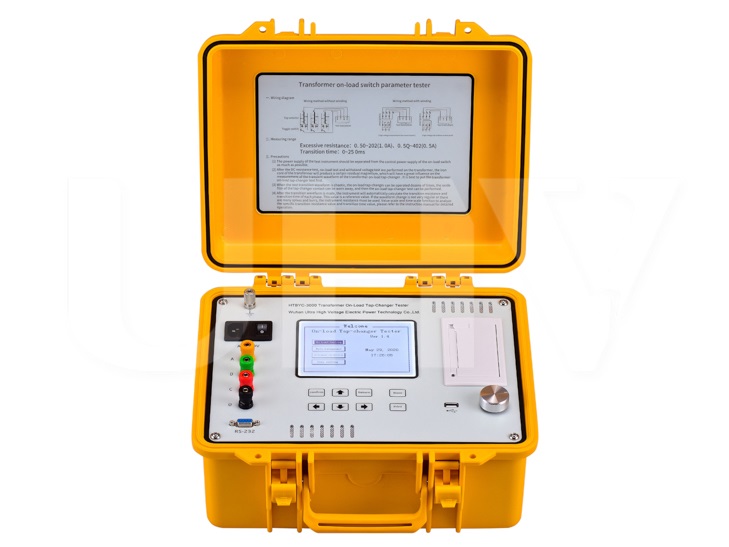

Wuhan HTBYC-3000 Transformer On-Load Tap-Changer Tester

- Power supply: AC220V±10%, 50±1Hz

- Current output: 1.0A , 0.5A

- Transition resistance measuring range: 0.5Ω～20Ω(1.0A), 0.5Ω～40Ω(0.5A)

- Transition resistance accuracy of measurement: ±(5% reading +3 words)

- Transition time: 0～250ms

- Transition time accuracy: ±(0.1% reading +3 characters)

- The environment temperature : -10℃～50℃

- Environmental humidity : ≤85%RH

- Overall dimensions: 345mm×295mm×175mm

- Instrument weight: 5kg

Accessories :

- Test line

- Ground wire

- U Disk

- Power Cord

- Printing paper

- Insurance tube
