High-voltage side output current: <15mA, 40mA, 200mA, 1A, 5A
Low-voltage side output current: 2A, 5A, 10A, 20A
Test range：
High voltage side：
1mΩ～2Ω （5A）
5mΩ～10Ω （1A）
100mΩ～50Ω （200mA）
1Ω～250Ω （40mA）
10Ω～20kΩ （<15mA）
Low voltage side：
100μΩ～500mΩ （20A）
200μΩ～1Ω （10A）
1mΩ～1.6Ω （5A）
5mΩ～4Ω （2A）
3. Accuracy：±(0.2%+2 bite)
Resolution：0.1μΩ
Working temperation：0～40℃
Environmental humidity: ≤90%RH, no condensation
Power supply：AC220V±10%，50Hz±1Hz
Dimension：448*463*177(mm)
NW：17.6kg
Product features:

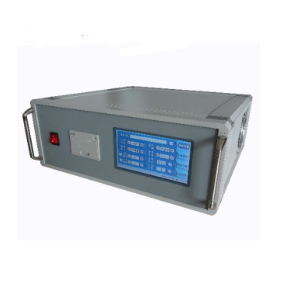

1.The Dual-channel DC Resistance Tester has large output current and high voltage.
2. Dual-channel measurement, measuring two resistance values at the same time.
3. The 2 channel dc resistance tester has a complete protection circuit and strong reliability.
4. The horizontal structure is convenient for on-site operation of the transformer factory.
5. With audible discharge alarm and clear discharge indication to reduce misoperation
