Application: Induction Of Cast Iron
Fuel: Electric Induction
Working Power: 70KW
Input voltage range: 340V-430V
Output oscillation frequency: 1-20KHZ
Max input current: 105A
Output current: 400-3500A
Weight:
+ Main machine: 80kg;
+ Control cabinet: 60kg
Dimension:
+ Main machine: 725*600*900mm (L*W*H);
+ Control cabinet: 670*420*500mm (L*W*H)
Capacity: 25KG cast iron
Melting Cycle: 6-30mins
Customized service: Yes
Crucible Type: Graphite
Max temperature: 2000 Degree Celcius (hearth)
Cooling type: Water cooling
Cooling water requirement: 0.8~0.16 Mpa; 9L/min
1. What is a steel melting indusrial induction melting furnace?

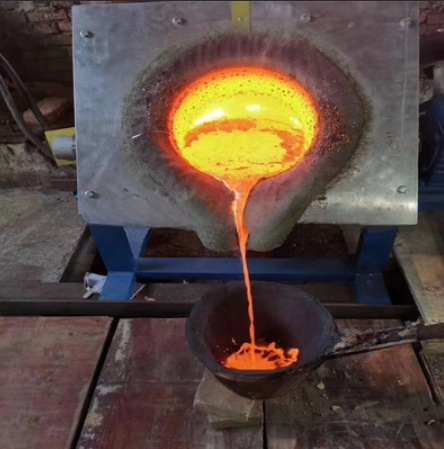

The steel melting industrail induction melting furnace is a tilting type furnace.
The furnace is comprised of the tilting type furnace body, the power supply cabinet, the capacitor cabinet, cables, etc.
This small induction melting furnace is equiped with IGBT power supply.
The steel melting induction melting furnace has a fast melting speed and a compact speed.
3. Main Features
3.1 The induction metal melting furnace adopts IGBT power device and unique frequency
conversion technology to operatestably and provide higher reliability and durability.
It has the function of constant current and constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating, and gives full play to the advantages of product. Under the same conditions, it has twice the power saving than the traditional SCR medium frequency. With 100% load design, it can work continuously for 24 hours and improve heating quality.
3.2 The main power devices of the induction melting furnace are all German Siemens brands, and the main electronic components are imported products (Motorola (diode), NEC (triode),
ST (three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have higher reliability and durability.
3.3 The metal melting furnace has alarm function and fault detection function, such as fault state protection and display including overcurrent, overvoltage and water shortage, etc.
3.4 The medium frequency induction melitng furnace is characterized of adjustable power, easy operation, stable quality and energy-savingness.
