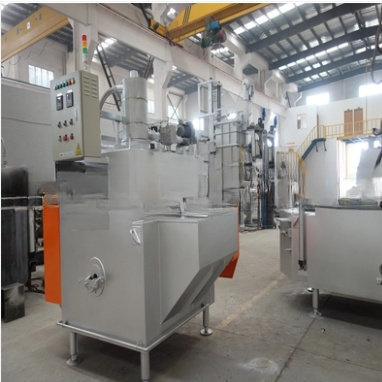

Furnace : Resistance Heating
Rated Power: 32KW
Holding Capacity: 800kg
Application: Low Pressure Casting
Max Pressure: 0.09Mpa
Overall Dimension (mm) L* W*H: 2300*1900*1400
1. Highlights
1.1 The electric aluminum holding furnace adopts the high strength steel plate with a great strength.
1.2 The resistance heating method has a big heat radiation range,
and a low metal burning loss. The heating element is equipped with the protection casing pipe of good conductivity.
1.3 Direct measurement of aluminum liquid temperature. The electric aluminum holding furnace has
double temperature control and measurement, which enables a control accuracy of ±5℃ of the aluminum liquid.
1.4 Lining is made of imported high-quality material, and casted as a whole.
1.5 The lining has a life of 5years based on normal use.
1.6 The electric aluminum holding furnace is equipped with asafety valve to prevent over-pressure.
1.7 The electric aluminum holding furnace can move horizontally and up-down based on the customers requirement.
