Rated capacity, t: 0.15
Max capacity, t: 0.18 (The maximum loading depends on the lining of the lining)
Rated tapping temperature, ℃: 1580
Melting rate, t/h: 0.1 *
Melting time, minutes/time: 55±5%*
Power consumption, KWH/T: 660±5%*
Working frequency, Hz: 1000
Input frequency, Hz: 50
Power Factor: ≥ 0.96
- Cooling-water of furnace:
Pressure of water, Mpa: 0.2-0.3 (Furnace inlet)
Inlet water temperature, ℃: 5~40
Outlet water temperature, ℃: ≤55
Flow (furnace), t/h: 8
Raise of water temperature, ℃: 10
Reducer System: Model RZS-231
- Power Cabinet:
Rated power, KW: 160 (0-160 can be adjustable)
Input Voltage, V: 3N 380V (Mid-range)
Electric rectificate mode: 6Pluse
Phase current, A: 260
- Cooling water of power:
Pressure of water, Mpa: 0.1-0.12 (Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa;)
Inlet water temperature, ℃: 5~35
Outlet water temperature, ℃: ≤45
Flow (power), t/h: 4
Raise of water temperature, ℃: 10
Note :* Must meet the following conditions:
1,the tapping temperature ≤ 1600 ℃;
2,scrap collection rate ≥ 97%;
3,hot, continuous, feeding speed is compact;
4,insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark
1.Industrial induction furnace Features
Various capacity 0.1T -20T,fast melting speed.40-60 minutes pot
Have self-test function, real-time supervise
Have leaking alarm device,PLC control, easy to operate
The control cabinet is standard of the automobile line,easy to maintain.
The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
Can meet 24 hours continuous work.
High efficiency, low cost, easy to maintain,energy saving safe and stability

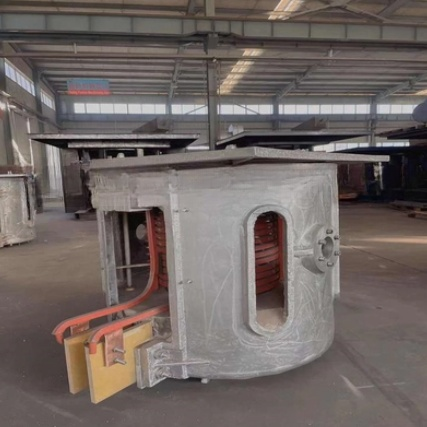

2.Aluminum Shell Industrial induction furnace
High melting efficiency, good power saving effect, compact structure,strong overload capacity.
Low temperature around the Industrial induction furnace, less smoke, good working environment.
The operation process is simple and the melting operation is reliable.
Fast melting temperature rise, easy to control furnace temperature,high production efficiency
Industrial induction furnace utilization rate is high,easy to replace varieties
