Rated capacity, t: 0.1 (Copper)
Max capacity, t: 0.12 (The maximum loading depends on the lining of the lining)
Rated tapping temperature, ℃: 1500-1650
Melting rate, t/h: 0.1 *
Melting time, minutes/time: 50±5%*
Power consumption, KWH/T: 660±5%*
Working frequency, Hz: 2500
Input frequency, Hz: 50
Power Factor: ≥0.96
- Cooling-water of furnace:
Pressure of water, Mpa: 0.2-0.3 (Furnace inlet)
Inlet water temperature, ℃: 5~40
Outlet water temperature, ℃: ≤55
Flow (furnace), t/h: 6
Raise of water temperature, ℃: 10
Reducer System: Model WDL-100IFS
- Power Cabinet:
Rated power, KW: 100 (0-100 can be adjustable)
Input Voltage, V: 3N 380V (Mid-range)
Electric rectificate mode: 6Pluse
Phase current, A: 160
- Cooling water of power:
Pressure of water, Mpa: 0.1-0.12 (Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa;)
Inlet water temperature, ℃: 5~35
Outlet water temperature, ℃: ≤45
Flow (power), t/h: 4
Raise of water temperature, ℃: 10
Note :* Must meet the following conditions:
1,the tapping temperature ≤ 1600 ℃;
2,scrap collection rate ≥ 97%;
3,hot, continuous, feeding speed is compact;
4,insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark

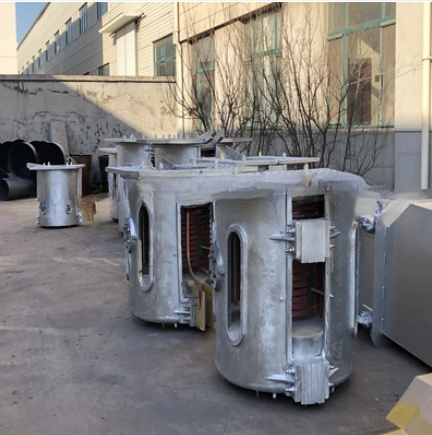

1.Aluminum shell steel melting industrial induction furnace introduction
1.1. KGPS Medium frequency industrial induction furnace consists of MF power supply, compensating capacitor, reduction box and so on.
1.2. Mainly used for melting cast iron, stainless steel, alloy steel, non-ferrous metals, including precious metals (such as gold, silver) and heavy metals (such as copper, lead).
It is suitable for all kinds of metal melting. The max temperature of the induction furnace is around 1900 degree celcius.
1.3. Mainly used in metallurgy industry, casting & foundry industry, induction melting furnace and other industries.
2.Aluminum shell steel melting indusfurnace features
2.1. Low cost.
2.2. Small floor space.
2.3. Thermal performance.
2.4. Uniform metal component.
2.5. Convenient to tilt and pour.
2.6. Rapid melting, low production cost.
2.7. Uniform temperature and easy to control.
