Crucible Type: Graphite
Application: Melting Cast Iron, Steel
Customized Service: Yes
Max Temperature: 2000 Degree Celcius
Power Module: IGBT Module
Output power: 70KW
Input voltage range: 340V-430V
Output oscillation frequency: 1-20KHZ
Max input current: 105A
Output current: 400-3500A
Capacity: 25KG cast iron
Cooling type: Water cooling
Cooling water requirement: 0.8~0.16Mpa; 9L/min
Weight:
- Power supply: 80kg;
- Control cabinet: 60kg
Dimension:
Main machine: 725*600*900mm(L*W*H);
Control cabinet: 670*420*500mm (L*W*H)
Supply Scope:
3.1 Heating power source, 1 set;
3.2 Foot switch, 1 pc;
3.3 Connection wire 2pcs; single wire 1 pc;
3.4 Furnace body 1set; flexible connection cable 2pcs;
3.5 Protective cap 1 set; protective gloves 1 pair;
3.6 User manual 1 copy;

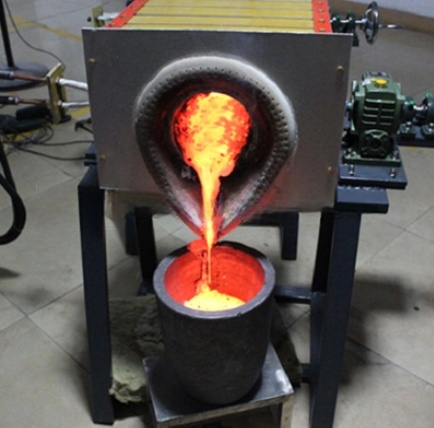

4.How induction melting furnace works
The metal melting furnace is easy in operation.
Turn on the general power switch.
Put in the raw material.
Press power supply button.
Adjust the power to maximum value.
Melting starts.
Press stop button.
Pour the molten liquid into the molds.
