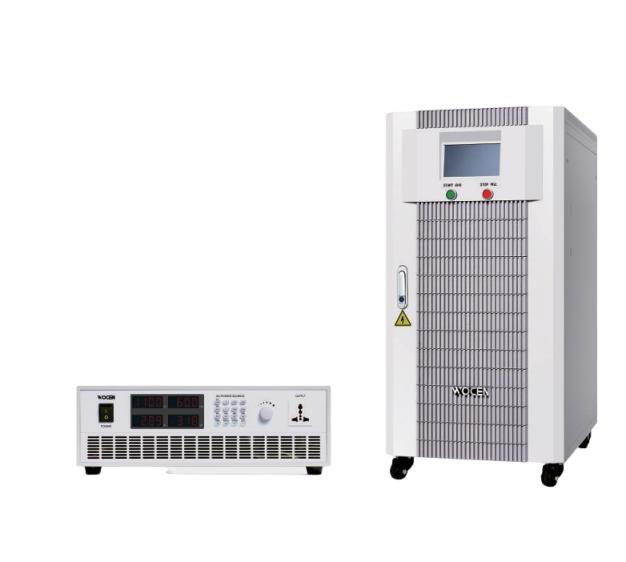

Single-phase output product
Voltage: Monophase 0-300V
Current (Low/High): 45A/22.5A
Power: 5kVA
Size (W*H*D) mm: 350×635×530
Input frequency: 50Hz/60Hz±5%
Output voltage range: Phase voltage: Low grade :0- 150V, high grade :0- 300V
Output voltage error: +(0.2% read value +0.2% full scale value)
Output frequency: 40- 70Hz adjustable
Frequency stability: <±0.1%
Transient recovery time: ≤20mS
Source effect/load effect: ≤1%
Waveform distortion: <1%(high/low voltage 220V/110V±15%, resistive load)
Overload capacity: 100%- 110%, 30s:110%- 120%, 10s:>120%, immediately shutdown the output (single-phase output product)
Protection function: Over voltage, over current, overload, high temperature, short circuit automatic protection and alarm display
Display
Display mode: LED
Output voltage: Unit V, minimum resolution 0.1V
Output current: The unit is A. The minimum resolution is 0.01A
Output frequency: The unit is Hz. The minimum resolution is 0.1Hz
Output power: Unit W/kW, minimum resolution 1W/0.01kW
Features
Protection current: The output current protection value can be customized
Communication function: Standard RS232; RS485 and network port communication are optional
Step programming: Supports setting 50 groups of voltage/frequency, each group of running time can be set to 99H:59M:59S, and can be cycled 60,000 times (three-phase output product)
Resistance compensation: 0.000- 0.500 euros
Security
Insulation impedance: ≥DC500V.10mΩ
Voltage insulation: DC2100V,10mA，60S
Cooling mode: Forced air cooling
Environment
Operating temperature: 0~40℃
Relative humidity: 0~90%(non-condensing state)
Altitude: <1500m
