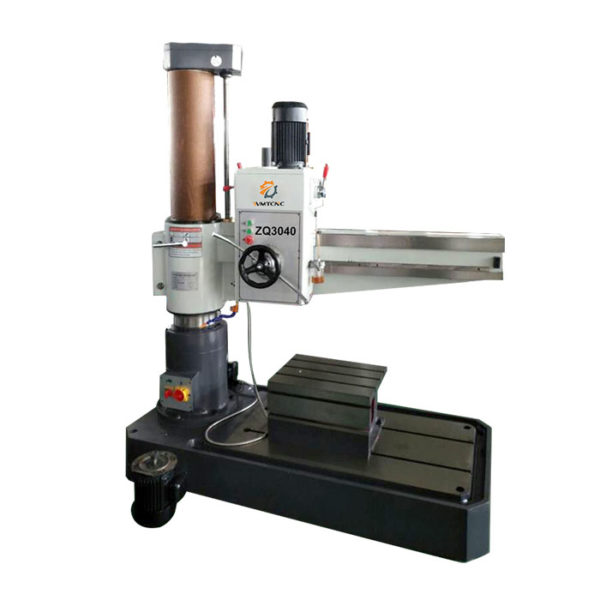

WMT CNC ZQ3040×13 Radial Drilling Machine (2.2kW)

Max Drilling Diameter: steel 32 /iron 40mm

Column dia: 280mm

Spindle center to column: 300-1300mm

Spindle box travel: 1000mm

Spindle nose to table: 250–1200mm

Arm lifting travel: 670mm

Spindle travel: 270mm

Spindle taper: 4 Morse

Spindle speed range: 75/130/240/380/660/1220r/min

Spindle speeds series: 0.10/0.16/0.25

Arm lifting speed: 1.3mm/r

Radial rotation Angle: 360°

Main motor power: 2.2kW

Lifting Motor Power: 0.55kW

Coolant motor power: 0.04kW

Machine weight: 2000kg

Machine overall size (L*W*H mm): 2000×800×2240mm
