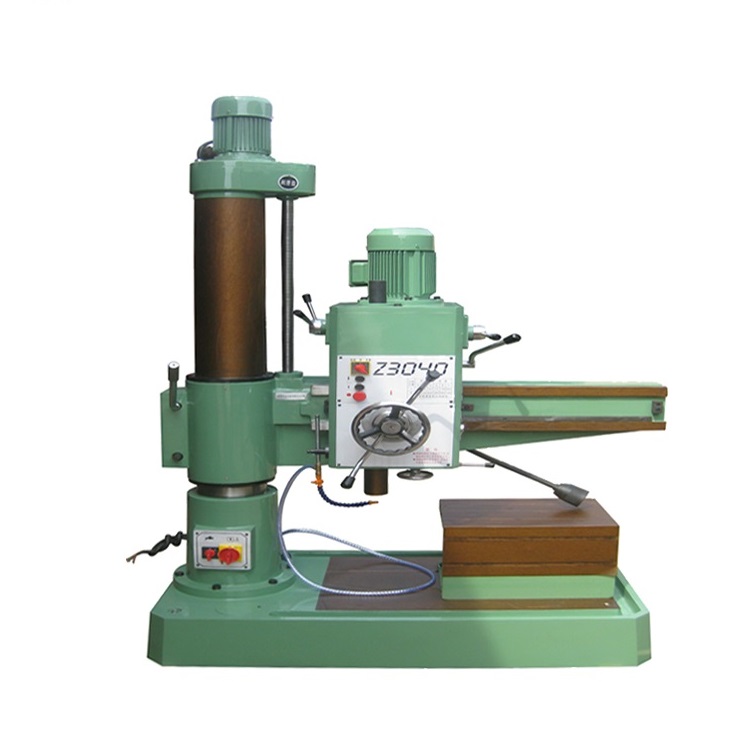

WMT CNC Z3040×12 Radial Drilling Machine

Max drilling capacity: 40mm

Distance from spindle nose to column: 300-1200/1400mm

Spindle horizontal travel: 900/1100mm

Spindle vertical travel: 300-1240mm

Spindle taper: MT4

Spindle travel: 210mm

Radial arm lifting speed: 1.26m/min

Radial arm lifting distance: 650mm

Drilling depth per circle: 140mm

Spindle speed: 80-1200r/min

Spindle speed series: 6

Range of spindle feed: 0.10-0.30mm/r

Spindle feed series: 3

Main motor power: 1.5kw

Lifting motor power: 0.75kw

Hydraulic clamping motor power: 0.55kw

Coolant pump power: 40w

Table size: 550x350x350mm

Net weight: 1500kgs/1700kgs

Oversall size: 1700/1900x800x2200mm
