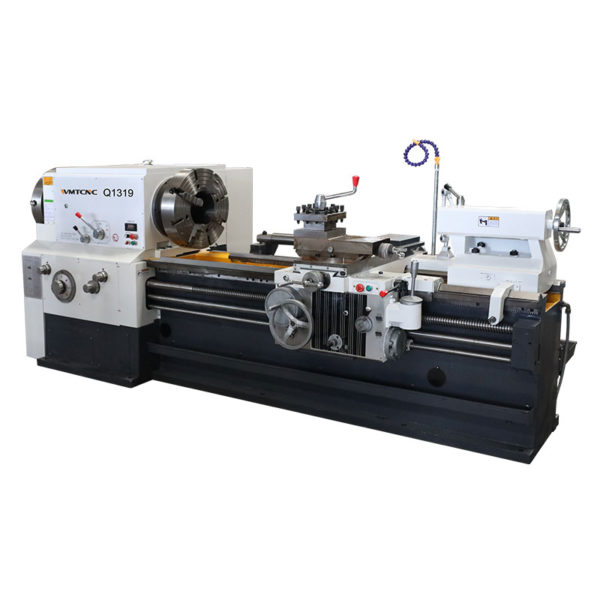

Max dia.swing over bed: 630mm
Max dia.swing over cross slide: 350mm
Max.length of work-piece: 1500mm
Width of bed: 550mm
Spindle bore: 200mm
Power of spindle motor: 11kW
Spindle speed: 24-300r/min FWD.12 steps
Z axis feed grade/range: 26/0.07-1.33mm/r
X axis feed grade/range: 22/0.02-0.45mm/r
Carriage rapid traverse speed: 4000mm/min
Cross slide rapid traverse speed: 2300mm/min
Metric thread grade/range: 2024/1/14mm
Inch thread grade/range: 1940/2/28T.P.I
Traverse of cross slide: 320mm
Max. Traverse of turret: 200mm
Tailstock quill travel: 250mm
Tailstock quill Dia./taper: Φ100/（MT5#）mm
Chuck: 4-jaw manual
Overall dimensions(L*W*H): 3657×1360×1555
Net weight: 4.5T
