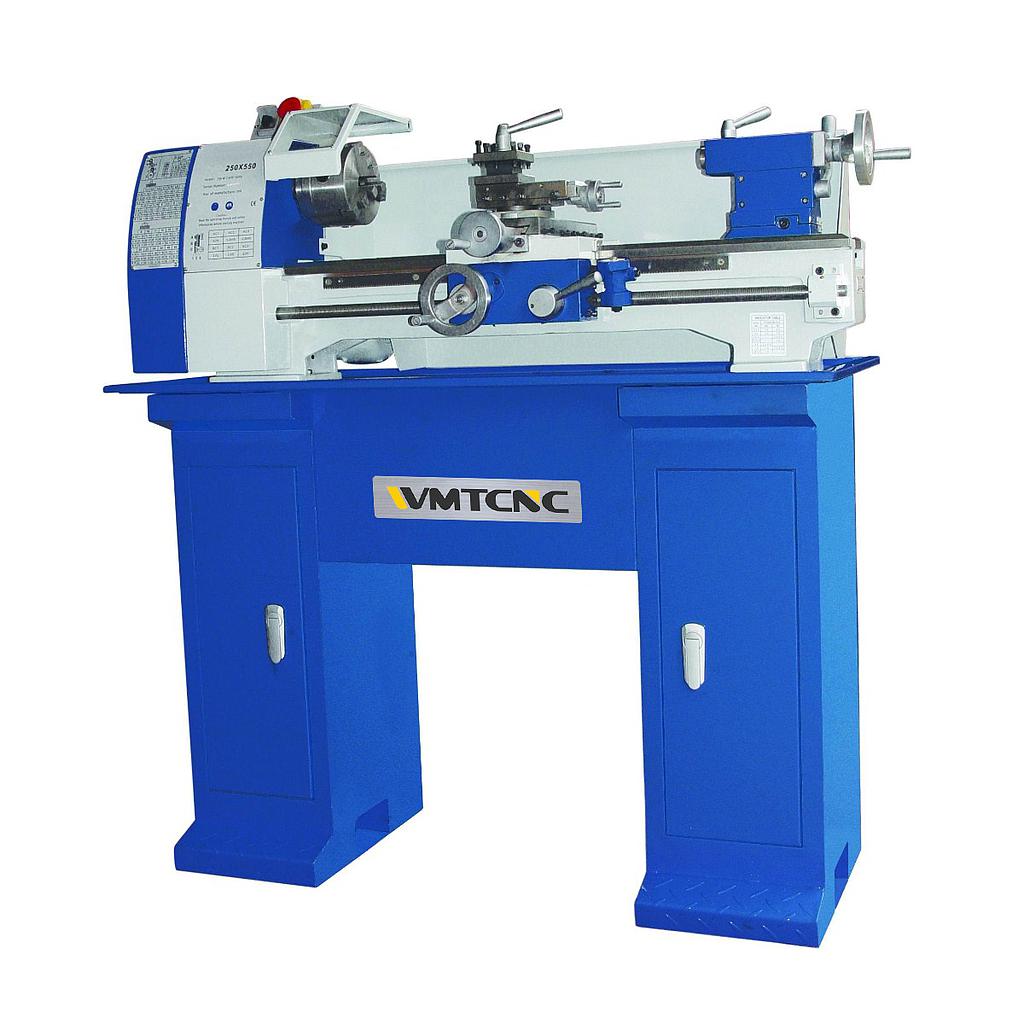

Swing over bed: 250mm
Swing over cross slide: 150mm
Distance between centers: 550/750mm
Width of bed: 135mm
Spindle bore: 26mm
Spindle taper: MT4
Spindle speed: Variable:50-2500rpm
Number of metric threads: 0.2-4mm
Tool post type: 4-poition
Maximum carriage slide travel: 135mm
Maximum carriage travel: 450/650mm
Tailstock spindle travel: 60mm
Taper in tailstock spindle: MT2
Main motor: 750W
Weight: 125kg/135kg
Machine size(LXWXH): 1150/1350X480X500mm
Dimension: 1220X560X560mm/1400X560X560mm
