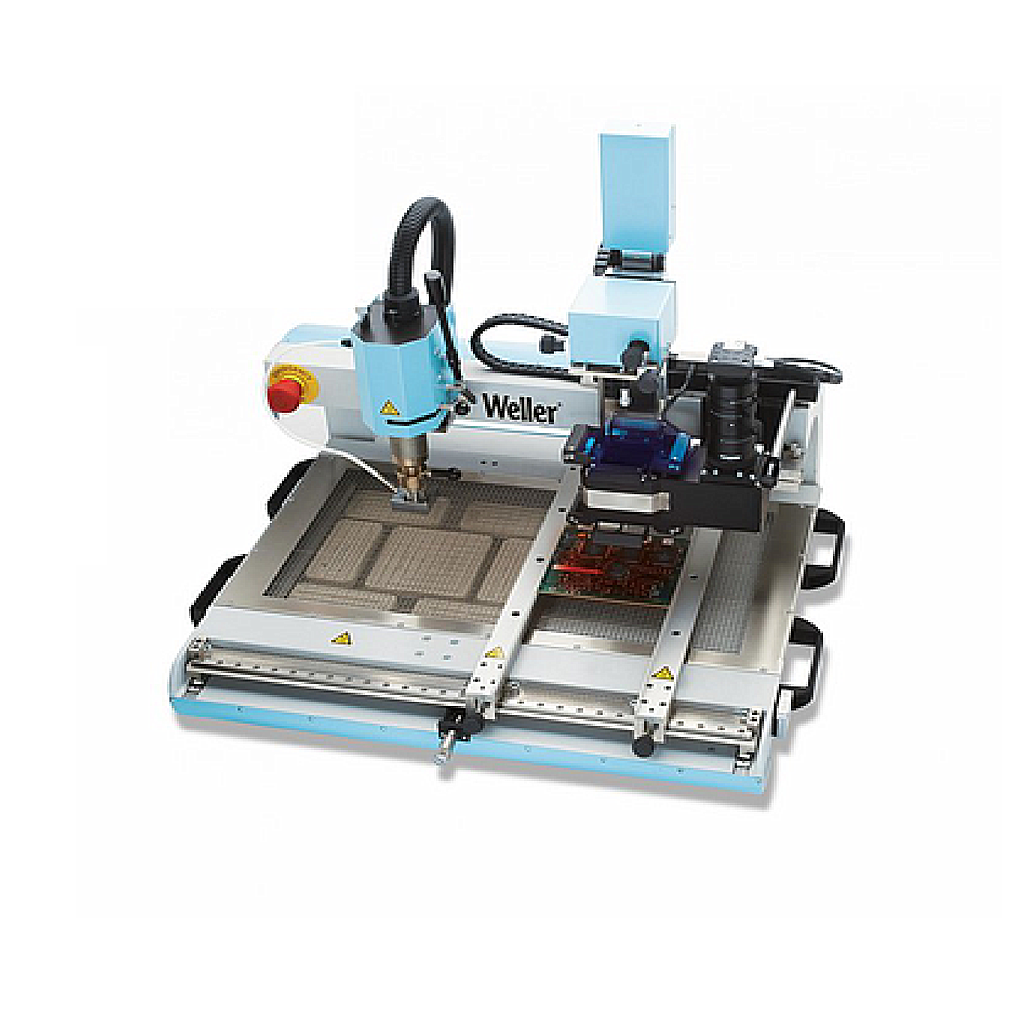

Weller WQB 4000SOPS BGA/QFP Repair system

Dimensions W x L x H: 692 x 580 x 680 mm
Mains supply voltage: 230 V
Power output: 2300 W
Top heating: 700W
Heating plate: large 1600 W (260 x 260 mm); small 400 W (120 x 120 mm)
Compressed air supply: 400 - 600 kPa clean, oil-free compressed air
Temperature control: continuously variable 50 °C - 400 °C
Temperatureaccuracy: ± 10°C (± 18°F)
Air volume hot air: continuously variable 5 - 50 l/min
Air consumption: 60 - 100 l / min
Safety class: 1
Order Information: Thermoelement Type K, Ø 0, 1 mm, NQ-Adapter, Vacuum insert Ø 10 mm, Vacuum insert Ø 4, 5 mm

Datasheet
