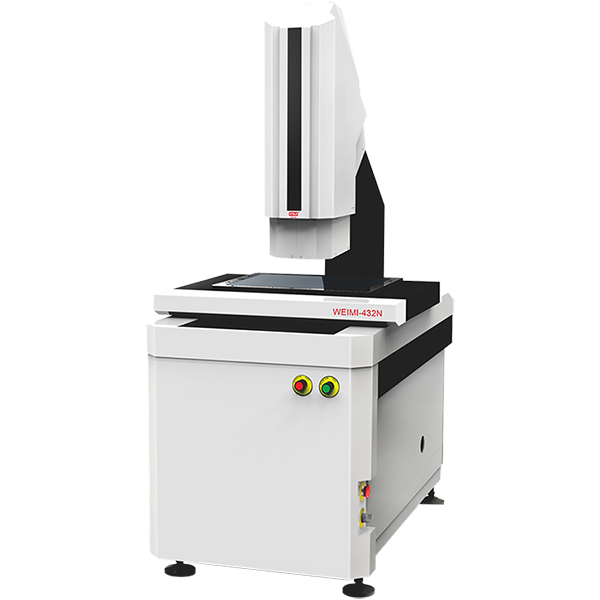

Dimension(L*W*H): 1260x710x1800 mm
Measuring range (X/Y/Z): 400/300/200 mm
Workbench
Working desk: 780*680
Material: Grade marble table & P-level linear guide
Glass surface: 460*360 mm
Load bearing: 35kg
Total weight: 700 kg
Image measurement and measurement system
CCD: Weimi20 high resolution color CCD
Zoom lens: 0.7-4.5X
Video zoom: 30-225X
Object field of view: 10.6-1.6 mm
Working distance: 90 mm
Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200, Z Accuracy ≤5+L/50 ("L" refers to the measured object l.ength in mm)
Repeatability: ≤0.003mm
Positioning accuracy: 0.001mm
Illumination: LED surface light, brightness adjustable
Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)
Power supply: 220V±10% (AC) 50Hz
Machine credit: 1100W
