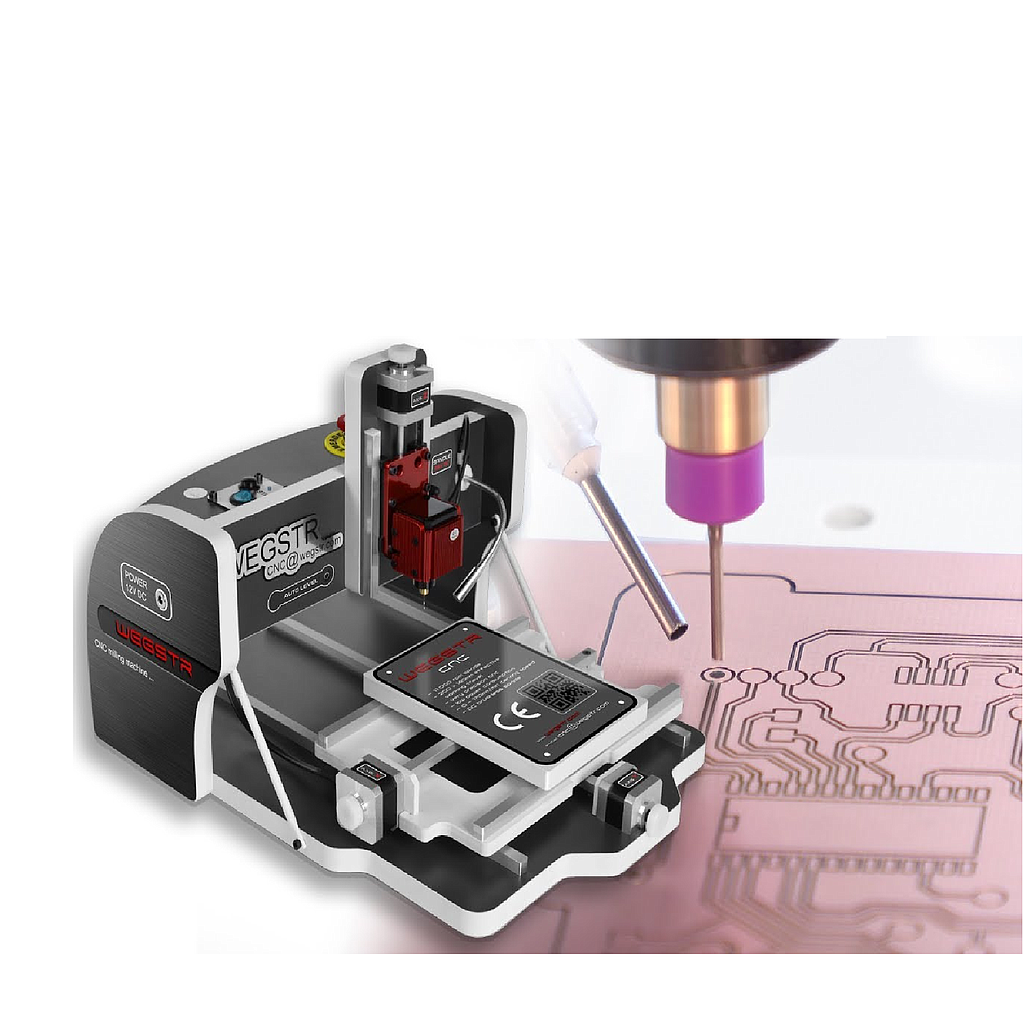

Application:
+ Its low cost, high precision and low noise operation makes it perfect for workshop, home or office use.
+ It mills both soft and hard plastic, wood, aluminium, duralumin, PCB, balsa wood, MDF, plexiglass, iron, copper, brass, bronze, gold, silver and more.
+ WEGSTR CNC is suitable for engineers, model makers, hobbyists, goldsmiths, jewelers, watchmakers, educational institutions and many others.
Technical:
+ Milling workspace
-140 mm (5.51 inch) (X)
-200 mm (7.87 inch) (Y)
-40 mm (1.58 inch) (Z)
+ One step of the stepper motor: 0.004 mm (0.000157 inch)
+ Machine dimensions: 380 x 460 x 290 mm
+ Spindle: Brushless motor
+ Diameter of spindle: 3.175 mm (0.125 inch)
+ Connectivity: USB
+ USB cable length: 1.6 m (63 inch)
+ Repeatability: 0.02 mm
+ Machine weight: 7kg
+ Max. speed:
- X axis: 170mm
- Y axis: 170mm
- Z axis: 170mm
+ Max. height of work piece: 40mm
+ Spindle speed: 11 000 rpm
