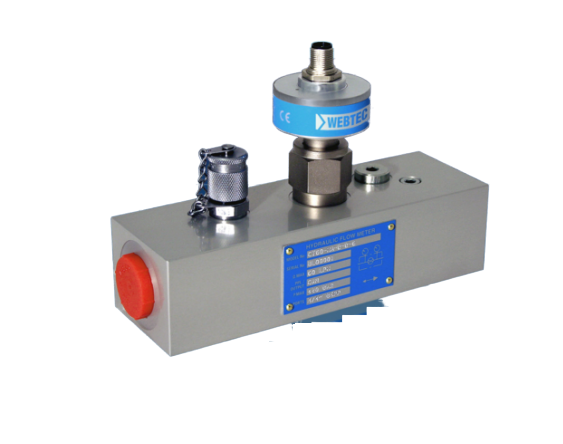

Main ports: 1” BSPP
Top ports: 1/4” BSPP
Flow range: 10 - 400 lpm
Max. pressure: 420 bar
- Functional specifcation:
Ambient temperature: 5 to 40 °C (41 - 104 °F)
Fluid type: Oils, fuels, water glycol, water oil emulsions
Fluid temperature: 5 to 90 °C (41 - 194 °F) continuous use.
Accuracy: 15 to 100% of range - 1% of indicated reading
Below 15% fxed accuracy of 1% of 15% of full scale (CT15 is 1% of full scale)
Repeatability: Better than ± 0.2%
Response Time: 50 m/s + 1 period
Degree of protection*: CT-mA, CT-5V– IP66 (EN60529) *With cable connected
- Electrical specifcation:
Supply voltage (VS): mA & 5V = 12 - 32 VDC
Current output: 4 - 20 mA, 3 wire loop, max loop resistance = (VS x 50) - 200 ohms
Voltage output: 0 - 5 VDC, current consumption = 10 mA, minimum load 20K ohms
- Construction material:
Flow body: 600/800/1500 High tensile Aluminium 2014A T6
15/60/150/300/400 High tensile Aluminium 2011 T6
Internal parts: Aluminium, Steel, Stainless Steel.
Transducer: Body and nut -steel 212A42 electroless nickel plated, Housing and Lid - Aluminium 2011 T3
Seals: Viton seals as standard EPDM are available - please consult sales office.
