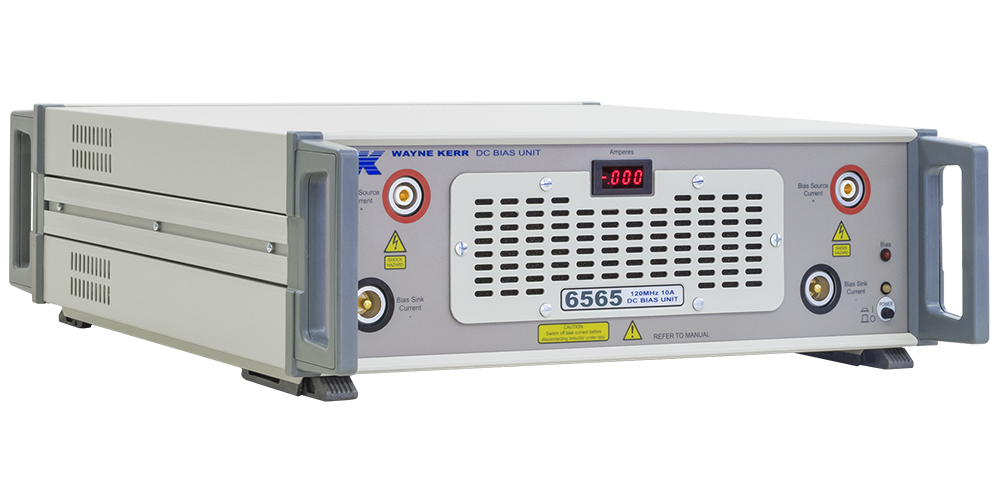

Measurement Function: The 6565 series of DC bias units must be used in conjunction with either the 6500B Precision Impedance Analyzer or the 6500P HF LCR Meter.
Frequency Range: 20Hz ~ 5MHz
Compliance Voltage:
9V maximum at 1 V ac drive level
10V maximum at 0.25 V ac drive level
Basic Accuracy: ±1%, Varies with measurement speed, frequency and options chosen.
Measurement Fixtures: 1026 is applicable for currents up to 20 A and the 1027 for currents up to 40 A. For SMD use the 1031 adaptor must be used in addition to the selected 1026 or 1027
Input Specification:
Universal 85 to 265 V AC, 47 to 63 Hz, 4.2 A rms (max).
Power factor Meets EN61000-3-2
Unit powers up automatically when connected to a powered analyzer. Isolating switch provided
Measurement Connections: I2C bus link controls application of DC current and monitors status of analyzer. Status data includes excessive voltage drop and over temperature
