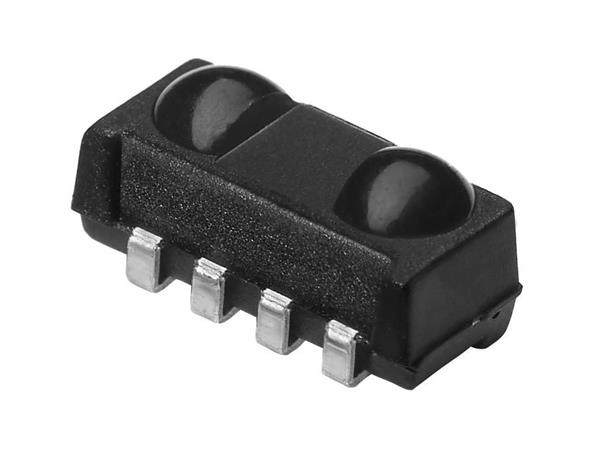

Vishay General Semiconductor TSSP77P38TR IR Receivers Heimdall 38kHz

Width: 3 mm

Height: 3.2 mm

Length: 6.8 mm

Beam Angle: 100 deg

Viewing Angle: 100 deg

Mounting Style: SMD/SMT

Output Current: 5 mA

Peak Wavelength: 940 nm

Carrier Frequency: 38 kHz

Moisture Sensitive: Yes

Low Level Pulse Width: 0.8 ms

Transmission Distance: 40 m

High Level Pulse Width: 0.8 ms

Pd - Power Dissipation: 10 mW

Operating Supply Current: 700 uA

Operating Supply Voltage: 2.5 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
