Thickness range: 1 ㎛ – 400 ㎛
Wavelength range: 750 ㎚ – 1,100 ㎚
Spot size: 40 ㎛, 80 ㎛ ( 8 ㎛ optional)
Repeatability: <± 0.001 ㎛ at 1 ㎛ SiO2 on Si wafer
Light source: Tungsten halogen 35 W
Sample stage: 140 mm x 132 mm (X-Y movement 75 x 50 mm)
Dimensions
Detector: 22 cm × 22 cm × 7 cm (H)

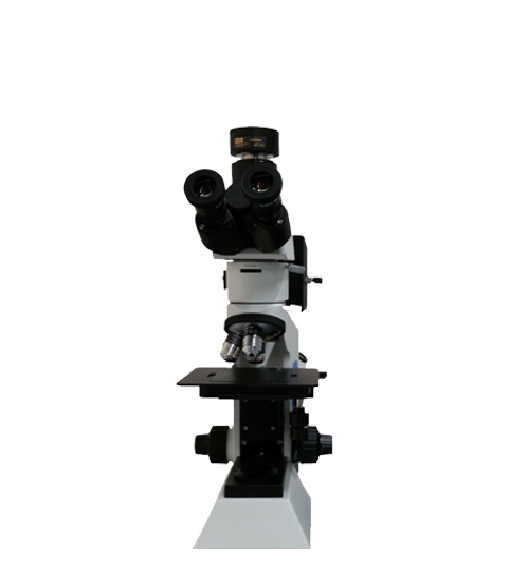

Microscope: 15 cm x 20 cm x 50 cm (H)
Weight: 110 or 220 V / 0.5 A
Applications:
- Semiconductor
- Display
- Conductive oxides
- Protective coatings
- PCB coating process
- Parylene coatings
- Hard coatings
- Lens coatings
- Bio medical applications
- Adhesive coatings
- Polymer films (ex. PET)
- Thick photo-resists (ex.SU-8)
