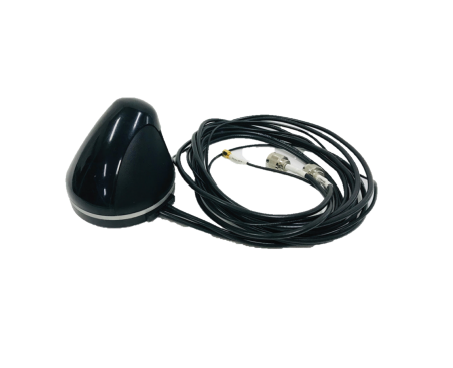

Mechanical Data:
Dimension: 107 × 107 × 93 mm (4.20 × 4.20 × 3.67 in)
Radome Material: Black ASA UV Inhibitive
Cable: RG-174, 8 ft. (GPS DC 3V and 5V); RF-195, 8 ft. (694-960/1710-3700 MHz); RF-195, 8 ft. (2.4 to 2.485 and 4.9 to 6.0 GHz)
Connector: RF: Type N plug (male); GPS: SMA plug (male)
Environmental Data:
Operating Temperature: –40 to +80 °C
Shock and Vibration: IEEE1478, EN 61373, MIL-810G, TIA 329.2-C
Dust and Water Ingress: IP67
Electrical Data:
Frequency Range: RF: 694–960 MHz, 1710–3700 MHz, 2400 MHz, and 4900–6000 MHz; GPS: 1575.42 ± 2 MHz
Gain: 3 dBi (694–960 MHz), 4 dBi (1710–3700 MHz), 5 dBi (2.4–2.485 and 4.9–6.0 GHz); GPS Unit Gain: 26 dB, 5 dBi antenna
Voltage: 3.3 and 5 V DC
Current: 10 mA typical, 20 mA max.
VSWR: < 2.0:1
Impedance: 50 Ω nominal
Maximum Power: 10 W
