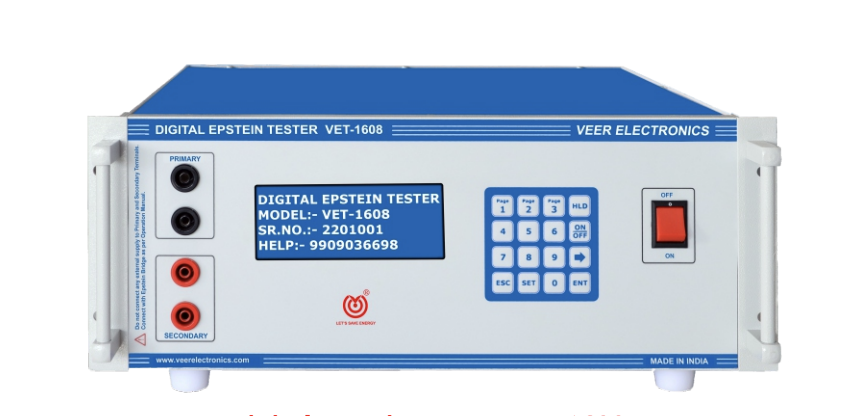

Veer Electronics VET-1608A (500g) Automatic Digital Epstein Tester (30 - 70 Hz, 8000 AT/m, 500 g)

Sine Wave Generator: 30 Hz to 70 Hz

Source Current Capacity: 11 A Peak or 8 A RMS

Source Voltage Capacity: 16 V RMS

Peak Magnetizing Force: 8000 AT/m

Distortion of Sine Wave: Less than 1% at no load

Auto Protection of Source: Auto shut off above 11 A Peak

Protection of Mains Power: Fuse and auto over-voltage cut-off

Power Supply Voltage: AC 230 V ± 10% @ 50 Hz (110 V ± 10% @ 60 Hz on request)

Operating Temperature & Humidity: 10 °C to 50 °C; < 75% RH (non-condensing)

Dimensions (W×D×H): Approx. 485 × 484 × 195 mm

Weight of Unit: Approx. 15 kg

Power Consumption: Approx. 85 VA

Specifications of Epstein size VEB-25:

Size: 25 cm (94 cm mean length)

Number of Turns: Primary = Secondary = 700 turns

Specimen Size: 30 mm × 280 mm to 305 mm

Specimen Weight Capacity: 500 g

Dimensions (W×D×H): Approx. 320 × 345 × 115 mm

Bridge Weight: Approx. 6.7 kg

Air Flux Compensating Coil: Mounted inside the bridge
