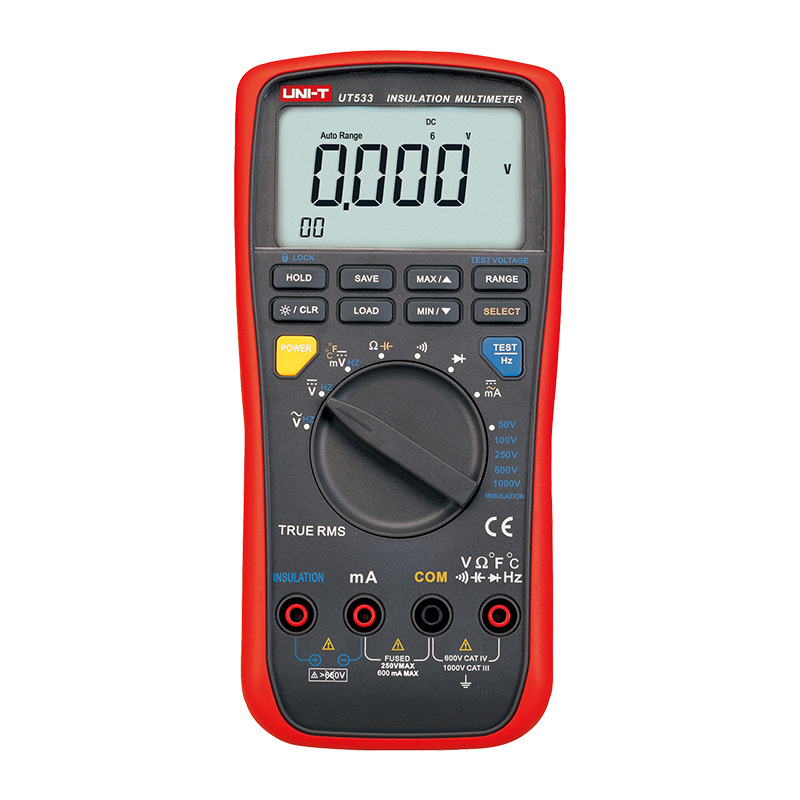

UNI-T UT533 Insulation Multimeter (0.1MΩ~2GΩ, 1000VAC/DC, 600mAAC/DC, True RMS)

Category ratings: CAT III 1000V, CAT IV 600V

Certificates: CE/RoHS

Insulation resistance: 0.1MΩ~2GΩ: ±(5%+5)

AC voltage (V): 6V~1000V: ±(2%+3）

DC voltage (V): 6mV~1000V: ±(0.3%+4）

AC Current: 60mA ~600mA: ±(1.5%+2）

DC Current: 60mA ~600mA: ±(1.0%+2)

Resistance (Ω): 600Ω~40MΩ: ±(1.5%+3)

Capacitance (F): 10nF~100uF: ±(3%+5)

Frequency (Hz): 60Hz~1MHz ±(0.1%+3)

Temperature(℃): -40℃ ~ 537℃: ±(1%+10)

Power: 1.5V LR6 * 6

Display: 81 * 46mm

Product size: 96.7 * 202.8 * 46mm

Product net weight: 505g

Standard accessories: Test lead, battery, Crocodile clip, K type thermal probe

Features:

Display count: 5999

Diode & Continuity: √

Dual display: √

Auto/Manual range: √

Backlight: √

MAX/MIN: √

Low battery indication: √

Auto power off: √

Data hold: √

True RMS: √
