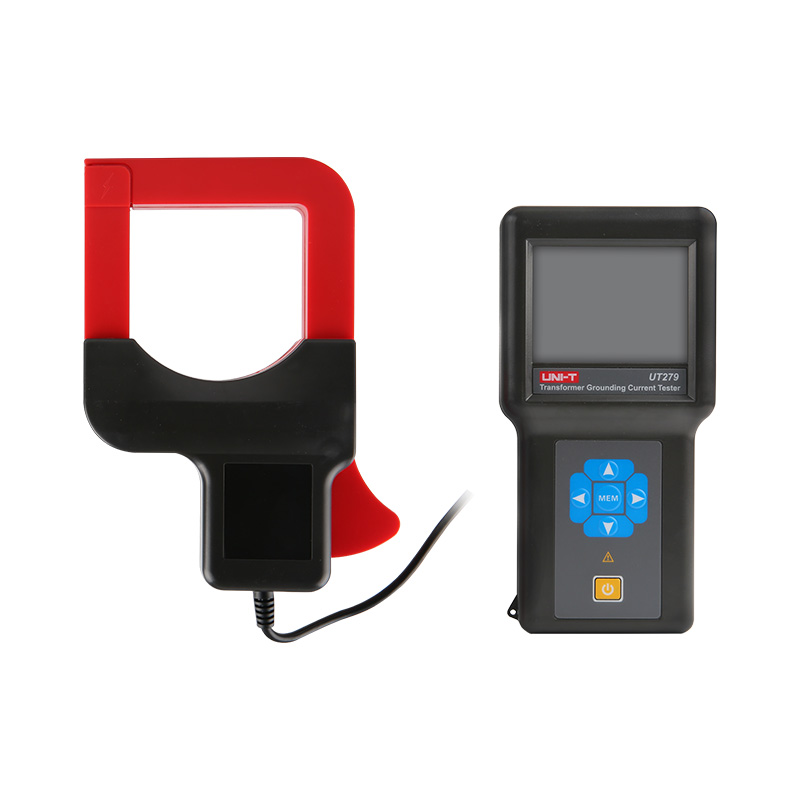

UNI-T UT279 Transformer grounding current tester (0.00mA～100ACA)

Specifications:

AC Current: (ACA)0.00mA～100A; ±（0.5%+5dgt）

AC Voltage: AC 0～600V; ±（0.5%+5dgt）

Frequency: 10HZ～1000HZ; ±2Hz

Features:

Function

1, Transformer core ground current test;

2, AC leakage current, current online test

Test method: Clamp CT

Jaw size:

1, Max measureable dis.: φ80mm wire;

2, Flat steel ground wire: 96 x 4mm

Screen: 3.5 inch color touch LCD (320 ×240);

Size: 71 x 53mm

Sampling rate: 1 time/second

Data storage: 200 set

Automatic shut-down: √

USB interface: Data transmission via USB cable

Alarm Settings: 10mA～99.99A

Alarm indication: Audiable & Visual alarm

Line voltage: <AC 600V

Over range display: The “OL” symbol display

Low battery indication: √

Lead length: Current clamp lead length: 2m

Working environment: -10℃～40℃; below 80%rh

Storage environment: -10℃～60℃; below 70%rh

Dielectric strength: AC 2kV/rms (between screw and case)

Pollution degree: 2

Suitable for safety regulations: CAT III 600V; IEC1010-1; IEC1010-2-032; IEC61326

General Characteristics

Power supply: DC 9V alkaline dry battery LR6 1.5V×6

Product Color: Red+Black

Product weight: Host: 450g (including battery);

Current clamp: 780g

Product dimension: Host size: 198 × 100 × 45mm;

Current Clamp Size: 194 × 145 × 40mm

Accessories: Meter (including current clamp) 1pcs, USB cable 1pcs, tester box 1pcs, AAA battery 6pcs, user manual 1pcs
