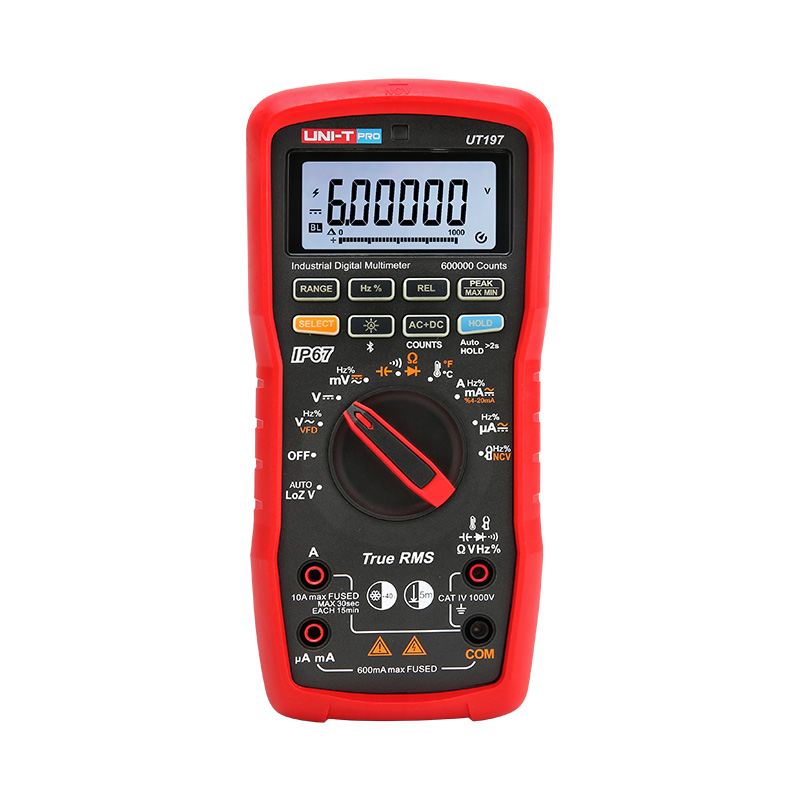

UNI-T UT197 Industrial Digital Multimeter (10AAC/DC, 1000VDC/AC, True RMS)

AC Current (A): 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.5%+50)

DC Current (A): 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.1%+20)

AC+DC Current (A) : 600.0uA/6000uA/60.00mA/600.0mA/6.000A/10.00A ±(1.0%+5)

AC Voltage (V):  600.00mV/6.0000V/60.000V/600.00V/1000.0V ±(0.3%+20)

Voltage (DCV) (60000 count): 600.00mV/6.0000V/60.000V/600.00V/1000.0V ±(0.03%+5)

Voltage (DCV) (600000 count): 600.000mV/6.00000V/60.0000V/600.000V/1000.00V ±(0.015%+10)

Auto AC/DC Voltage:  600.0V ±（0.8％＋5）

Voltage Range (ACV+DCV): 600.0mV/6.000V/60.00V/600.0V/1000V  ±（0.8％＋5）

Externalcurrent (DC) (Optional: UT-CS07): 100.0A（(10mV/A)/1000A(1V/A) ±(1.5%+5)

Externalcurrent (AC) (Optional: UT-CS07): 100.0A（(10mV/A)/1000A(1V/A) ±(1.5%+5)

Frequency (Hz): 10Hz～1MHz  ±(0.002%+5)

Resistance (Ω): 600.00Ω/6.0000kΩ/60.000kΩ/600.00kΩ/6.0000MΩ/60.00MΩ ±(0.07％+2）

Capacitance (F): 60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF ±(0.8％+3）

Temperature (℃): -40℃~1000℃ ±(1.0%+15)

Temperature (℉): -40℉~1832℉ ±(1.0%+30)

Duty Cycle (%): 10Hz～10kHz(10%~90%) ±(1.2%+5)

Features:

True RMS Value: √

Display count: 600000 (DCV); 9999 (frequency):   √

Diode Test: 3.0V:   √

Non-Contact Voltage: √

Continuity Buzzer: √

Data Hold (Manual/Auto): √

Peak Capture: √

Maximum/Minimum Value: √

High Voltage Alarm: √

Low Battery Indicator: √

Miswired Probe Alarm: √

Overrange Indicator: √

Auto Power Off: Around 15 minutes:   √

Auto Backlight: √

Bluetooth Communication: √

Drop Test: 5m

IP Protection Level: IP67

Safety Standard Level: CAT IV 1000V

Certification: CE，cETLus，ROHS

General Characteristics:

Power supply: 1.5V AA * 2pcs

Product Color: Black + Red

Product Dimension: 220mm x 104mm x 67mm

Product weight: Around 835g (batteries included)

Accessories: Test lead, temperature probe, Clips, batteries.
