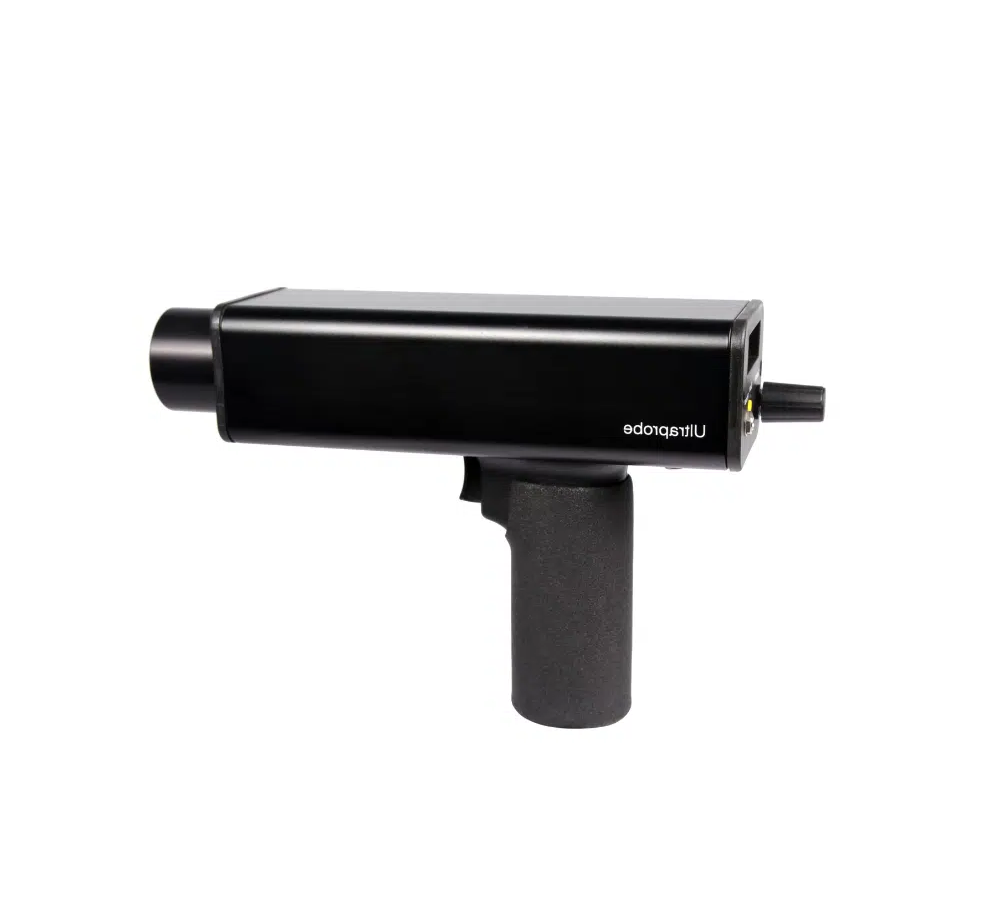

Construction: Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry: Solid State SMD Digital Circuitry with temperature compensation
Frequency Range: 20 KHz to 100 KHz (tunable in 1 KHz increments)
Response Time: < 10 ms
Display: 16 x 2 LCD with LED Backlight
Memory: 400 storage locations
Battery: NIMH Rechargeable
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes: Trisonic Scanning Module and Stethoscope Module
Headset: Deluxe noise attenuating headphones for hard hat use
Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity: Detects 0.127 mm (0.005”) diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)
Threshold*: 1 x 10^-2 std. cc/sec to 1 x 10^-3 std. cc/sec.
Dimensions: Complete kit in Zero Halliburton aluminum carrying case 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”)
Weight
+ Pistol Unit: 0.9 kg (2 lbs.)
+ Complete carrying case: 6.4 kg (14 lbs.)
Display Modes: Real Time, Snap Shot, Peak Hold, and Storage Display
