Uby Tech IPX1-2 Vertical Drop Rain Test (Wall-mounted) | EMIN.CO.ID

Rain Spray Test Chamber, Waterproof test (IP-X)
Uby Tech IPX1-2 Vertical Drop Rain Test (Wall-mounted)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

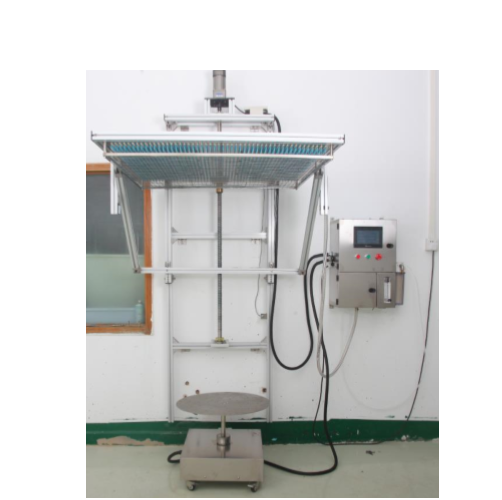

Product image

Uby Tech IPX1-2 Vertical Drop Rain Test (Wall-mounted)

ManufacturerUby Tech(View more products from this manufacturer)

ModelIPX1-2

P/NYX-FS12C-1000

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Used to test the IPX1, IPX2 waterproof level of the product

Specifications

External size: About 1230*1340*2420mm

Inner size: 1000*1000mm

Drip board size: 1 r/min(IPX1), Can be set

Turntable diameter: ￠0.4mm

Turntable height: 20*20mm

Drip aperture: ￠600mm

Distance between drip holes: 600 mm

Rainfall: IPX1=1mm/min (+0.5mm/min); IPX2=3mm/min (+0.5mm/min)

Flow adjustment method: Manual adjustment

Drop rain board lifting method: 800—1800mm Adjustable

Turntable load-bearing: Not liftable (fixed)

Turntable tilt: 50kg

Turntable speed: 0° or 15° (horizontal direction)

Testing time: 0-999 min

Safety protection device: Leakage protection, water shortage protection, short circuit protection

Power supply: 220V, 50Hz

Power: 1kW

Datasheet
