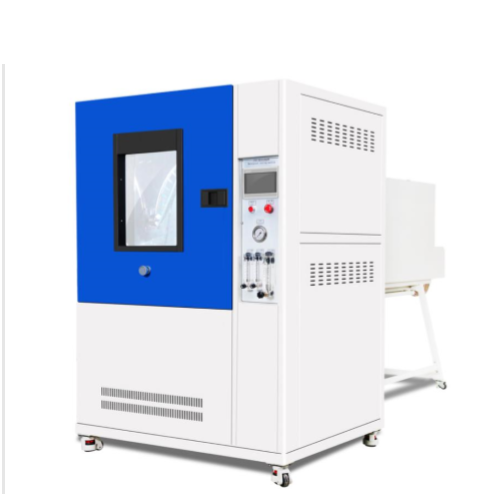

Uby Tech IPX3-6 Comprehensive Waterproof Test Box (50kg)

Used to test the four waterproof levels of IPX3, IPX4, IPX5, and IPX6 of the product

Specifications

Inner size: L900*D900*H900mm

External size: L1350*D3400*H1755mm

Turntable diameter: ￠400mm

Maximum load-bearing capacity of turntable: 50KG

Lifting height of turntable: 400-700mm

Turntable speed: 1-5r/min (precisely adjustable)

Turntable rotation method: Always forward/Forward and reverse alternately/Intermittent rotation

Testing time: 0-999min

Total mass of equipment: 300kg

Power supply: 380V, 50Hz

Test sample power: 220V, 50Hz

Power: 3.0KW

Safety protection function: Leakage protection, water shortage protection, short circuitprotection
