Uby Tech UP-6198-FS34A Rain Shower Test Device (Test IPX3, IPX4) | EMIN.CO.ID

Rain Spray Test Chamber, Waterproof test (IP-X)
Uby Tech UP-6198-FS34A Rain Shower Test Device (Test IPX3, IPX4)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

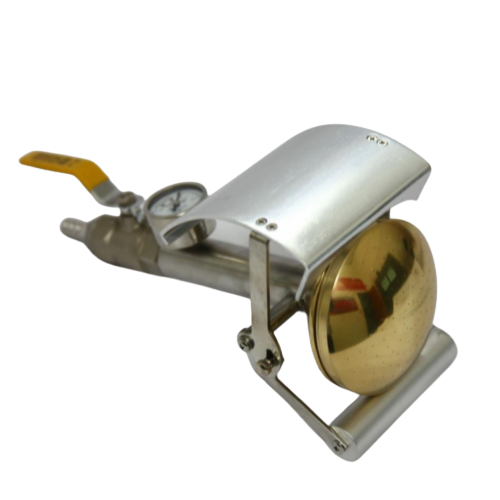

Product image

Uby Tech UP-6198-FS34A Rain Shower Test Device (Test IPX3, IPX4)

ManufacturerUby Tech(View more products from this manufacturer)

ModelUP-6198-FS34A

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Used to test the IPX3 and IPX4 waterproof level of the product

Specifications

External size: About L380*W130*H150mm

Flow display: None

Brass nozzle size: Ø 102mm

Number of spray holes: 121个

Water jet aperture size: Ø 0.5mm

Hole position/ Outer diameter of water inlet

- Inside 2 circles 12 holes/circle, spacing 30°

- Inside 4 circles 24 holes/circle, spacing 15°

Outer diameter of stainless steel water pipe: Ø 18mm

Water flow: Ø 28mm

Flow adjustment method: 10L/min±5%

Water pressure range: Manual adjustment

External dimensions: 50―150Kpa

Datasheet
