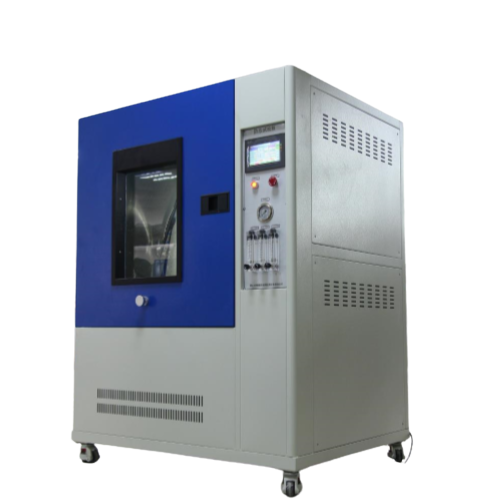

Uby Tech IPX1-4 Comprehensive Waterproof Test Box (50kg)

Used to test the four waterproof levels of IPX1, IPX2, IPX3, and IPX4 of the product

Specifications

Inner size: L900*D900*H1050mm

External size: About L1350*D1120*H 1770mm

Turntable diameter: ￠400mm

Maximum load-bearing capacity of turntable: 50KG

Lifting height of turntable: 450-750mm

Turntable can be tilted: 0° or 15° (horizontal direction)

Turntable speed: 1-5r/min (precisely adjustable)

Turntable rotation method: Always forward/Forward and reverse alternately/Intermittent rotation

Testing time: 0-999min

Total mass of equipment: 230kg

Power supply: 220V, 50Hz

Test sample power: 220V, 50Hz

Power: 1.0KW

Safety protection function: Leakage protection, water shortage protection, short circuitprotection
