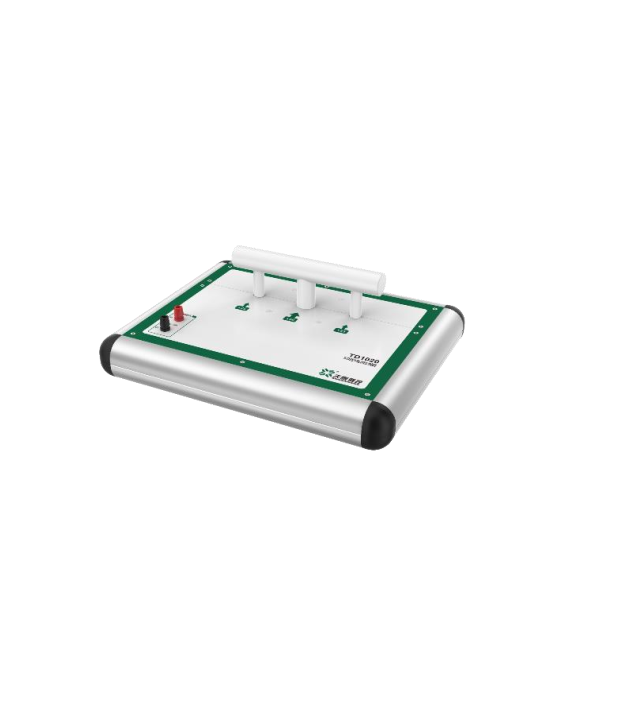

Tunkia TD1020-50T-20A Current Coil

Turns

Middle: 50

Side: 25

Max current input: 22 Arms

Continuous output time: <11 A, continuous; >11 A, ≤ 30minutes.

Frequency: DC， 45 Hz ~ 400 Hz DC

Accuracy

DC: ±0.3%

AC: ±0.3% @ 50 Hz, ±0.5% @ 400 Hz

Note: During calibration, the jaws of the clamp meter should be placed at the center of the TD1020 current column, otherwise additional measurement errors will occur.

Power Supply ——

Temperature

Operation Temperature： 13°C ~ 33°C；

Storage Temperature： -30°C ~ 70°C

Humidity

Operation Humidity： 30%R·H ~ 80%R·H， No condensation

Storage Humidity： 10%R·H ~ 90%R·H， No condensation

Altitude < 3000 m
