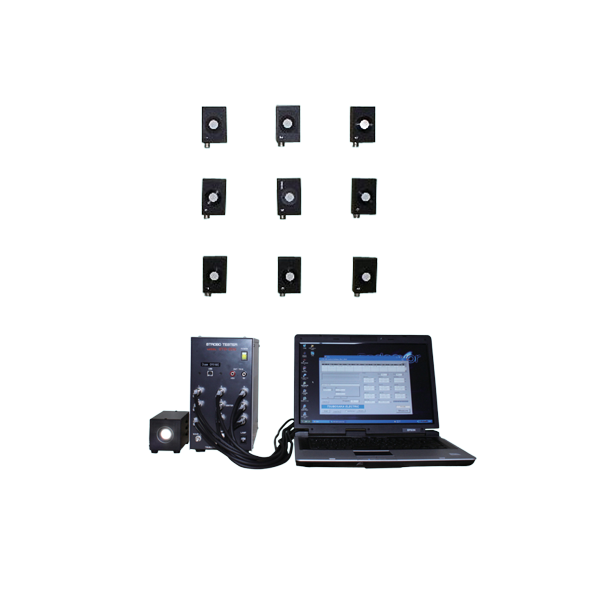

Tsubosaka STB-209XL2 Nine Points Light Distribution Tester (Silicon photo diode)

Scan range: Silicon photo diode

Measurement item

(1) Main light volume(1 point) and peripheral light volume(8 points)

Light volume[lx･s], Light volume[GN], Light distribution[⊿EV,%], Maximum illuminance[klx], Illuminance[lx]

(2) Only main light volume (added to the above measurement items)

Light volume[AV/Fno], Maximum illuminance[lx], Flash time[ms], Attenuation rate[%]

Supported OS: Windows7,10

Measurement time [ｍs]: LX-MODE : 30 - 1400

Measurement time [s]: MP-MODE : 1 - 10

Judgment function: OK / NG judgment

Communication I / F: USB 2.0 compliant

Power-supply voltage: AC100 - 240V 50/60Hz

Power consumption [VA]: 50

Dimensions (WxHxD) [mm]

Main unit : 140 x 264 x 280

Light receiving parts : 75 x 50 x 45

Calibration light source : 110 x 120 x 230

Weight [kg]: 12

Accessories

Light receiving part (9pcs)

Light receiving connection cable (9pcs)

Calibration light source
