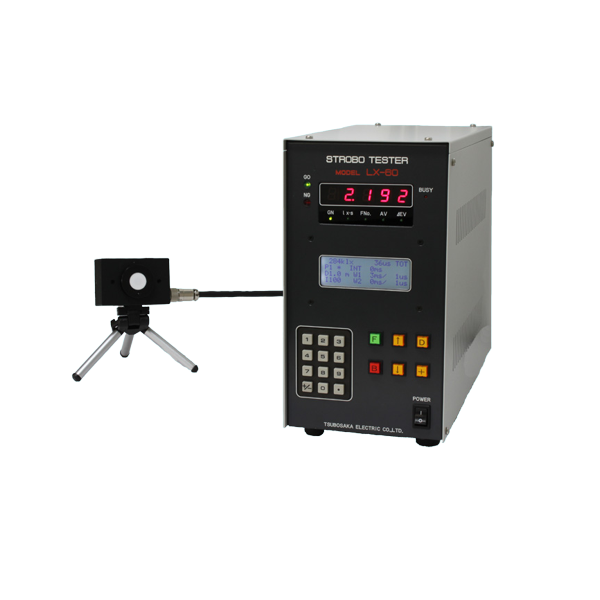

Tsubosaka LX-60 Sampling Flash Meter (0.1 - 9999 lx.s)

Setting range

Photosensitivity (3 levels)

Measurement time

Measurement pattern

Measurement resolution

Judgment criteria

Measurement range: Luminescence light quantity : 0.1 - 9999 [lx.s]

Supported OS: Windows7,10

Measurement time [ｍs]: 1 - 90

Communication I / F: RS-232C compliant or USB 2.0 compliant (option)

Power-supply voltage: AC100 - 240V 50/60Hz

Dimensions (WxHxD) [mm]

Main unit : 140 x 264 x 280

Light receiving part : 75 x 50 x 60

Weight [kg]: 6

Accessories

Light receiving part (1pcs)

Light receiving connection cable (1pcs)

Measurement item

Light exposure [lx･s] : Time integration value of flashing light luminescence

Guide No. [GN] : The proper value of the film sensitivity and the distance of the photography to a light exposure

Fno. [Fno.] : The proper value of Fno. to a light exposure

Aperture value [AV] : Iris diaphragm index

⊿EV [EV] : The deviation to the setting standard value

Maximum illuminance [lx] : Illuminance:Brightness of a surface lighted up by the light

Luminescence time [ms] : Time from start of emission of light to end of emission of light
