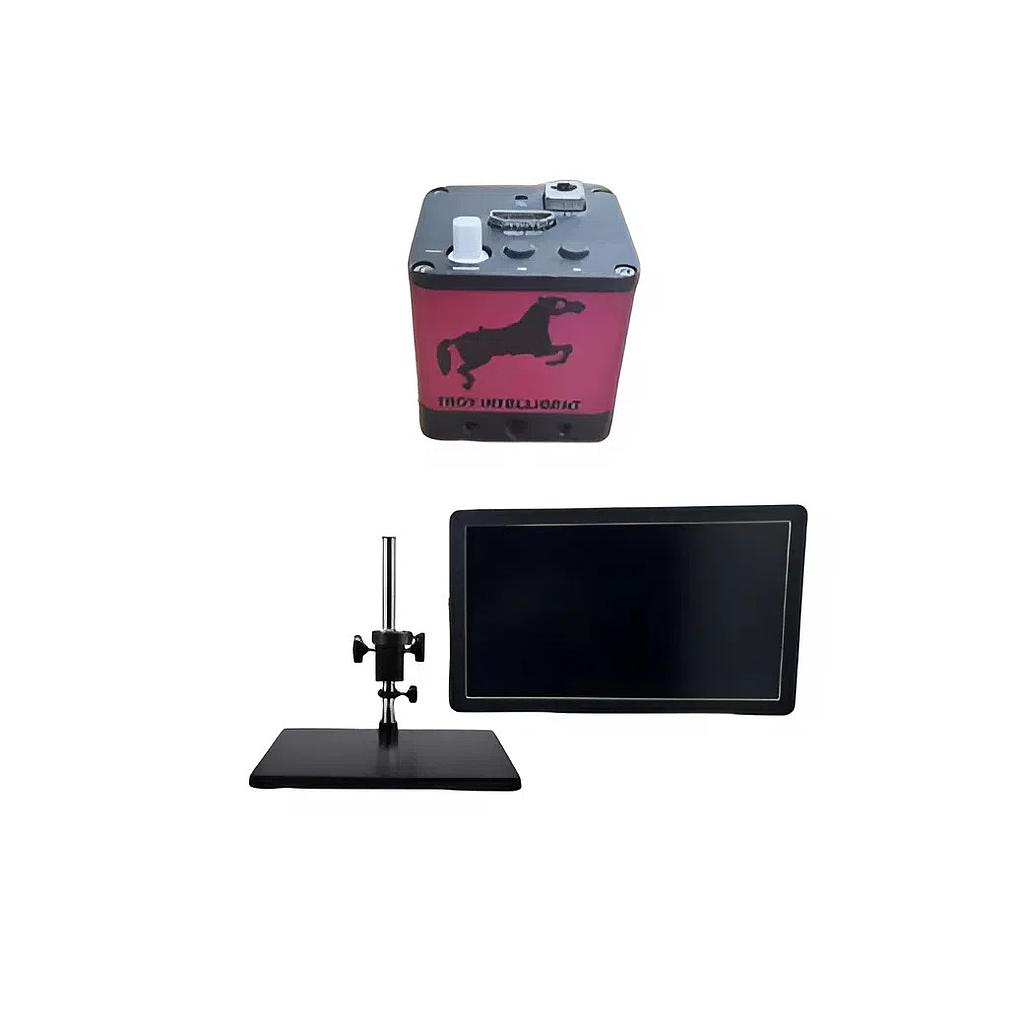

Troy Intelligent TVN-HD500_A Electron microscope (1920*1080, 60fps)

Camera specifications

Chip structure: FPGA + ARM

Kemel structure: Dual-core Cortex-A9

Operating system: LINUX 3.10

Optical dimensions: 1/1.2″

Main frequency speed: 1Ghz

Interface: 2 USB (Mouse / U Disk)

Resolution: 1920*1080

Image element: 5 * 5μm

Frame rate: 60 fps

White balance: Automatic

Eliminate strong light: Continuously adjustable

Crosshairs integration: 64 horizontal and vertical lines

Raise the edge: Adjust

Video output: HDMI digital output

Operating temperature: -10 °C -70 °C

Voltage output: DC 12V

Adjust color temperature: RGB can be adjusted independently

Lens connector: C Interface

Weight: 450g

External dimensions: 61*61*76mm

Parameters of the entire microscope:

Output interface: HDMI

Exaggerated: 27-230X

Center distance: 150mm

Ocular: 1X

Height: 318mm

Objective lens: 0.6-5X Multi-speed adjustment

Size: 330 * 300 * 320mm

Optical magnification: 0.6-5X (customizable)

Lamp beads: 56 LEDs

Working distance: 86mm

Power input voltage: AC100-AC240V

Focus range: 40mm

Column size: 32 * 318mm

Inner and outer diameter of column: 95/63mm

Display: 21 inches

Wattage: 4.5W

Accessory:

Light Souce

Lens 0.5-4.5

HDMI cable

12V source

Screen 13.3

Base and Holder
