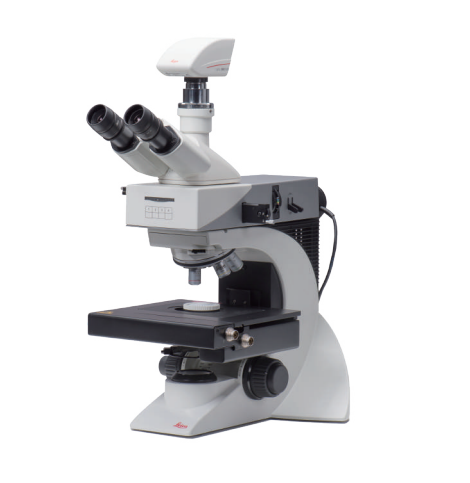

Stand: Robust metal stand
Infinity optical system:
Two-gear focusing mechanism (with top focus brake system, coarse/fine adjustment with 1-micron micrometer scale)
or three-gear focusing mechanism (with top focus brake system, coarse/medium/fine adjustment with 1-micron and 4-micron micrometer scales)
Both systems feature force-controlled coarse focusing and adjustable stage height stop mechanism
Stage Travel: 25 mm
Incident light:
Robust incident light axis with 4-position reflector turret, designed for brightfield, darkfield, differential interference contrast (DIC), polarization, and fluorescence observations
Objective Turret / Objectives:
5× BF / DF M32, 6× BF M25, and 7× BF M25 objective turrets
Accessories:
Optional magnification changing device (1×, 1.5×, 2×)
Fixed ergonomically designed stage (76 × 50 mm), with left-hand or right-hand operation, or rotating stage (76 × 50 mm)
Equipped with wear-resistant ceramic surface (standard configuration), enabling tasks that require stage supports and condenser holders
Optional stages for X, Y, and Z axis measurements are available
Transmitted Light:
LED illuminator with internal light intensity control
Compatible with built-in 32 mm diameter three-position filter holder
Suitable for wide-range condensers for incident light applications
Power Supply:
Stable universal power supply with an operating voltage range of 90–230 V
Features three optional objective turrets: BF/DF M32 microscope nosepiece can accommodate up to five objectives, while the BF/FLUO configuration supports up to six or seven objectives.
Suitable for samples up to 100 × 100 mm in size, such as metal sheets, semiconductor wafers, or printed circuit boards, with a maximum thickness of 80mm, for example, machined parts. Comprehensive testing programs can be used for monitoring.
TheMacroobjectivelensallowsyoutoviewa40mmsampleataglance, making it an ideal tool for quick positioning and comprehensive documentation.
