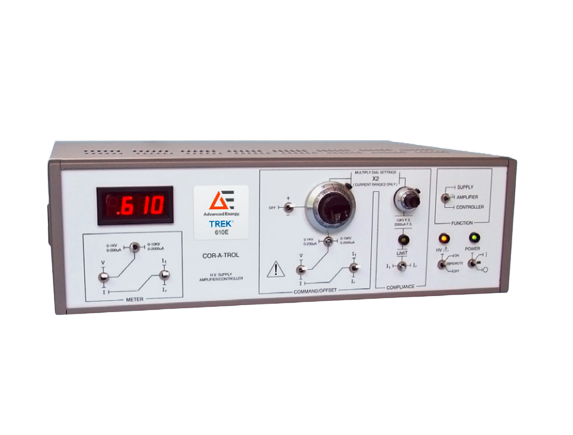

TREK 610E-K-CE High Voltage Power Amplifier (±10kV, 2mA)

Output Voltage Ranges:

As a High Voltage Supply: 0 to ±1 kV or 0 to ±10 kV; switch selectable/adjustable with potentiometer. Resolution of 1 kV range is 1 V, resolution of 10 kV range is 10 V

As a High Voltage Amplifier and Controller: 0 to ±1 kV or 0 to ±10 kV DC or peak AC; switch selectable

Output Current Ranges:

As a Current Supply 0 to ±200 μA or 0 to ±2000 μA; switch selectable/ adjustable with potentiometer. Resolution of 200 μA range is 0.2 μA, resolution of 2000 μA range is 2 μA

As a Transconductance Amplifier and Controller: 0 to ±200 μA or 0 to ±2000 μA DC or peak AC, switch selectable

Input Voltage Ranges:

As a High Voltage Amplifier and Controller: 0 to ±10 V DC or peak AC

As a Transconductance Amplifier and Controller: 0 to ±10 V DC or peak AC

Gain and Accuracy:

As a High Voltage Amplifier and Controller:

Gain: 1 kV range: 100 V/V

0 kV range: 1000 V/V

Accuracy: Better than 0.3% of full scale (controller mode is dependent on user-specified components)

As a Transconductance Amplifier and Controller:

Gain: 200 μA range: 20 μA/V

2000 μA range: 200 μA/V

Accuracy Better than 0.3% of full scale, typical and 1% full scale, max (controller mode is dependent on user-specified components)

Compliance:

Voltage Range: Adjustable range 0 to ±10 kV DC (or peak AC) using the potentiometer

Current Range: Adjustable range 0 to ±2 mA DC (or peak AC) using the potentiometer

DC Offset Voltage Less than 2 V

Output Noise Less than 700 mV rms (measured with a 20 kHz true rms meter)

Slew Rate Greater than 35 V/μs (10% to 90%, typical)

Large Signal Bandwidth DC to greater than 600 Hz (1% Distortion)

DC to greater than 1.2 kHz

Small Signal Bandwidth DC to 10 kHz (-3dB)

Settling Time to 1% Less than 1 ms for a 0 to 10 kV step

Dimensions (H x W x D) 140 x 432 x 374 mm (5.5 x 17 x 15 in)

Weight 10.6 kg (23.5 lb)

HV Control Three-position switch: On, Off, Remote

Mode Control Three-position switch: Supply, Amplifier, Controller

Included Accessories:

23291 Operator's Manual

43406 HV Output Cable

Varies Line Cord, Fuses (selected per geographic area)

Other Accessories:

43421 HV Output Cable, 5 m

43422 HV Output Cable, 10 m

43423 HV Output Cable, 20 m

607RA 19 in Rack Mount Kit (with EIA hole spacing)

607RAJ 19 in Rack Mount Kit (with JIS hole spacing)
