Capacity: Up to 65 cycles/minute
Strap Width: 5 mm, 6 mm, or 9 mm
Arch Size: 550 mm (W) x 400 mm (H)
Tension Range: 1 - 32 kg
Weight: 158 kg
Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH
Options
Photo-eye switch
Rear foot bar switch
Foot pedal switch
Lower adjustable table height (770 mm - 820 mm)
VIDEO

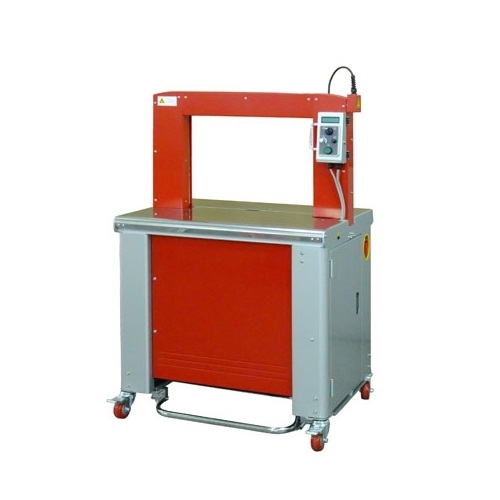

Transpak TP-702, TP-702P, TP-702RS Mercury
Datasheet
Mercury TP-702RS is built on Mercury TP-702 with special designed parts. It is suitable for small or round packages such as plastic pipes, steel rod, hardwood, etc. It can strap packages as small as 40 mm (W) x 10 mm (H) or round packages as small as Ø 32 mm x 2 pieces. TP-702RS provides reliable high speed performance for small or round package applications.
Features
Robust & compact mechanical strapping head
Free access to strap guides (patents registered)
Waist-high quick coil change (patents registered)
Waist-high auto strap feeding
Turnable operating control panel
Auto strap ejector
Dispenser release switch
Sensor controlled heater
Low voltage
Strap end ejector
Front foot bar switch
Adjustable table height between 820 mm and 920 mm
