Capacity
Up to 42 bundles/minute (single strap)
Up to 24 bundles/minute (double straps)
Bundle Size W x H
Max: 500 x 390mm
Min: 120 x 10mm
Bundle Weight: max 25 kg
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 ~ 32 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Pneumatic Source: 6 bar
Air Consumption: 2.65 liter/cycle
Weight: 430 Kg
Options
Energy saving transit with auto sleep mode
Light tower with low strap sensor (triple lamp)
Additional soft press for convex bundle
Lower adjustable table height with movable casters (730 mm ~ 830 mm)
Automatic side squaring
Reverse bundle flow
Low volume bundle bypass

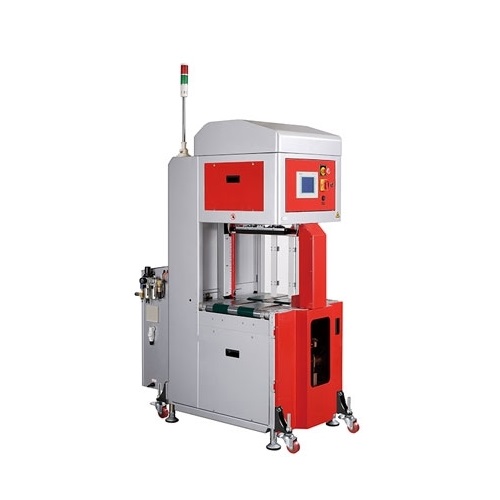

Movable casters (picture shown with this option)
Lever switch for bundle with wrapping
Extension belt-driven table of 200 mm on upstream or downstream sides
Datasheet
TP-702NS is a fully automatic strapping machine. With its high strapping speed, it can be integrated into most production lines and be utilized for various applications.
Features
Robust & compact mechanical strapping head
Automatic tension control for various bundle dimensions (patents registered)
Dual pneumatic press
Up and down stream interlock with complete plug connection
Fully automatic operation with variable conveyor speed
Siemens PLC and touch panel
Free access to strap guides (patents registered)
Easy access to strapping head (patents registered)
Strap end ejector
Adjustable table height between 800 mm and 900 mm
Auto strap ejector
