Direct access to our certified experts
Capacity: Up to 31 bundles/minute
Bundle SizeW x L x H
Max: 450 x 500 x 390 mm
Min: 120 x 210 x 10 mm
Bundle Weight: max 25 kg
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Pneumatic Source: 6 bar
Air Consumption: 11.18 liter/cycle
Weight: 905 Kg
Options
Energy saving transit with auto sleep mode
Light tower with low strap sensor (triple lamp)
Additional soft press for convex bundle
Lower adjustable table height with movable casters (730 mm – 830 mm)
Automatic side squaring
Reverse bundle flow
Low volume bundle bypass

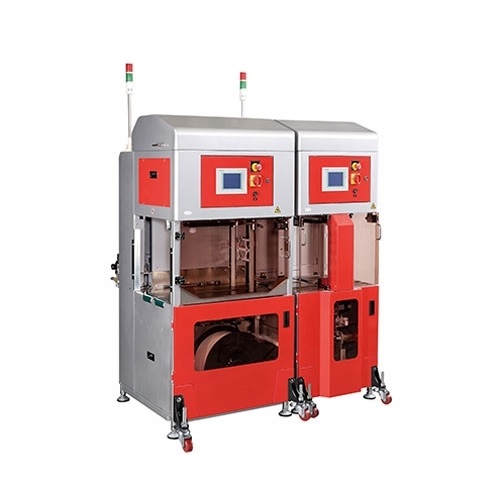

Movable casters (picture shown with this option)
Lever switch for bundle with wrapping
Video
Watch as reference: TP-702NIL Inline Cross Strapping System, Newspaper Strapping Machines - TRANSPAK
Datasheet
TP-702NIL is a fully automatic strapping system for inline cross strapping. The design without bundle turning can secure the integrity of the bundle for cross strapping.
Features
Robust & compact mechanical strapping head
Automatic self-adjusting strap chute (patents registered)
Siemens PLC and HMI
Easy access to strapping head (patents registered)
Free access to strap guides (patents registered)
Automatic tension control (patents registered)
Dual pneumatic press
Auto strap ejector
Strap end ejector
Up and down stream interlock with complete plug connection
