Strap Width: 5 mm, 6 mm, 9 mm or 12 mm
Tension Range
1-32 kg (for 5 mm, 6 mm, 9 mm)
1-55 kg (for 12 mm)
Capacity: Up to 36 packages/minute (Cycle speed up to 65 cycles/minute)
Weight: 228 kg
Electrical Requirements
110V, 220V, 230V, 240V 50/60Hz 1PH
220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Dual channel E-Stop
Light tower with low strap sensor
Energy saving transit with auto sleep mode
Strapping in the center of the bundle & strapping controlled with 2 photo eyes
Extension belt-driven table of 200 mm on upstream and downstream sides
Lower adjustable table height (750 mm – 900 mm)
Automatic tension control by package height detection (3 stage tension)
Automatically determining the number of straps by package length
Signal exchange via 16 pin connector
Low package bypass
VIDEO
Watch as reference: TP-702B Fully Automatic Strapping Machines - TRANSPAK
Datasheet

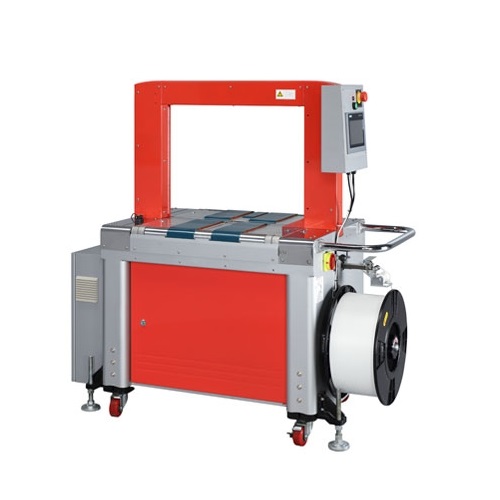

Mercury Transit TP-702BH is a fully automatic strapping machine with belt-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702BH is the fastest and most reliable strapping machine for general applications on the market today.
Features
Robust & compact mechanical strapping head
Belt-driven table
Equipped with Siemens PLC and HMI as standard
Waist-high auto strap feeding
Free access to strap guides (patents registered)
Electronic tension control
Auto strap ejector
Hinged top plates
Diverse strapping patterns
Variable conveyor speed between 10 and 60 meters/minute
Up and down stream interlock with complete plug connection
Easy bundle flow direction change
Good to strap small package with minimum size 120 mm in width and 10 mm in height
Adjustable table height between 800 mm and 900 mm
